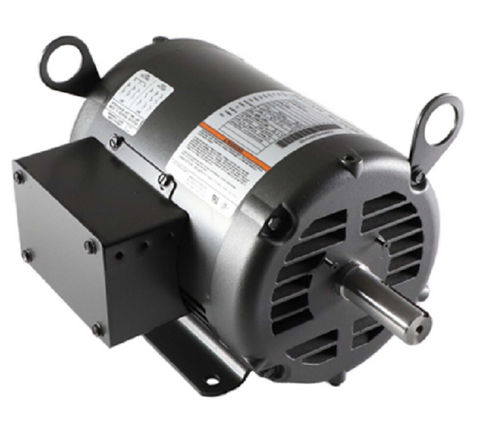

Baldor Motor EHM3154T Motor

The Baldor EHM3154T Motor is a high-performance three-phase HVAC motor designed for demanding commercial air handling and pumping applications. This 1.5 HP motor features a durable 145T frame construction with an Open Slotted Band (OPSB) enclosure to ensure optimal cooling during continuous operation. Operating at a synchronous speed of 1800 RPM (1755 RPM full load), the unit provides reliable torque for direct-drive or belted fans and blowers. With a NEMA Premium efficiency rating of 86.5% and a 1.15 service factor, this motor is inverter-ready, allowing for seamless integration with variable frequency drives (VFDs) to maximize energy savings. The 230/460V dual voltage capability and reversible rotation offer the versatility needed for field replacements. Built with heavy-gauge steel and premium ball bearings, this 4-pole AC motor is engineered for longevity in standard 40°C ambient environments without frequent maintenance intervals.

• NEMA Premium Efficiency: Optimized for lower operating costs and reduced thermal stress on internal components.
• Inverter Duty Ready: Engineered to handle the voltage spikes associated with VFD operation in modern HVAC systems.
• Rigid Base Mounting: Provides a stable footprint for 145T frame motor replacements in industrial air handlers.
• Class F Insulation: High-grade thermal protection ensures reliability under continuous duty cycles.
• Reversible Rotation: Simplifies installation by allowing CCW or CW rotation through standard lead reconfiguration.

• Is the Baldor EHM3154T compatible with variable speed drives? Yes, this model is specifically rated as inverter-ready per NEMA MG1 Part 31.4.4.2 standards.
• What are the wiring requirements for 230V vs 460V? This motor features a 9-lead configuration; refer to the included CD0005 connection diagram for proper high/low voltage terminal jumping.
• Can this motor be mounted vertically? The EHM3154T includes locked drive-end ball bearings, making it suitable for mounting in multiple positions, including fan-on-shaft applications.
