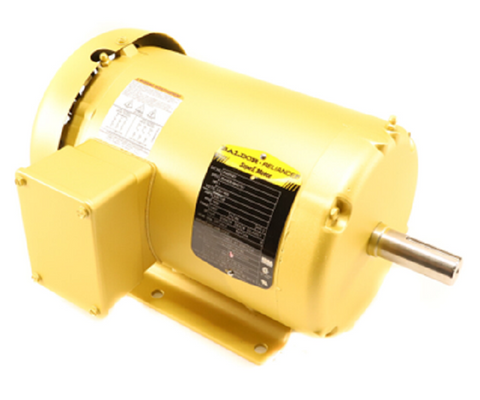

Baldor Motor EM3556T Motor

The Baldor-Reliance EM3556T is a high-performance 1 HP three-phase motor engineered for rigorous industrial HVACR applications. Operating at a synchronous speed of 1200 RPM (1170 RPM full load), this NEMA Premium efficiency motor is housed in a 145T frame with a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring protection against dust, debris, and moisture. Built with a heavy-gauge steel frame and ball bearings, it is optimized for continuous duty in pumps, fans, and compressors. Designed for versatility, the EM3556T supports 230/460V configurations and is inverter-ready per NEMA MG1 Part 31.4.4.2 specifications. This Super-E motor prioritizes energy conservation and thermal stability with Class F insulation and a 1.15 service factor, making it a reliable choice for contractors seeking to reduce operational overhead while maintaining high torque for demanding mechanical loads.

• NEMA Premium Efficiency: Optimized for lower energy consumption and reduced heat generation during long-run cycles.
• TEFC Protection: The Totally Enclosed Fan Cooled design prevents atmospheric contaminants from entering the motor windings.
• Inverter Ready: Suitable for use with Variable Frequency Drives (VFD) for precise speed control and automated system integration.
• Durable Construction: Features a 145T rigid base mount and high-quality ball bearings for extended mechanical life in harsh environments.
• Versatile Compatibility: Standard 7/8-inch keyed shaft allows for easy integration with most industrial pulleys, couplings, and fans.

What is the frame size and mounting for the EM3556T?
This motor utilizes a standard NEMA 145T frame with a rigid base, ensuring a stable footprint for floor-mounted or bracket-mounted industrial equipment.

Is this motor compatible with VFD controllers?
Yes, the EM3556T is rated as inverter-ready, meeting NEMA MG1 Part 31 standards, which allows for efficient operation under variable torque and speed conditions.

Can this motor be used in outdoor environments?
With its TEFC enclosure, the motor is designed to withstand damp and dusty conditions; however, proper shielding from direct heavy precipitation is recommended for all General Purpose Steel motors.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
