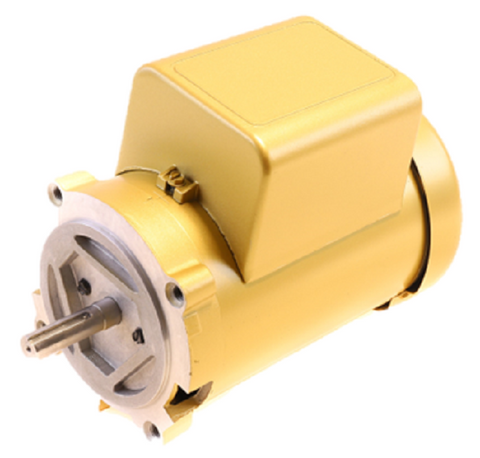

Baldor Motor VEL11301 Motor

The Baldor-Reliance VEL11301 is a high-performance 1/3 HP NEMA 56C frame motor designed for demanding industrial and commercial HVACR applications. Operating at a synchronous speed of 1800 RPM, this single-phase AC motor provides reliable torque for belt-driven fans, blowers, and pumps. Built with a TEFC (Totally Enclosed Fan Cooled) enclosure, the VEL11301 motor ensures protection against contaminants in harsh environments. This unit features dual voltage 115/230V capability, allowing for field flexibility during installation. The C-Face mounting configuration facilitates direct coupling to gear reducers or pumps, while the resilient base minimizes vibration transfer. With ball bearing construction and a heavy-duty steel band frame, this general-purpose motor is engineered for continuous duty cycles. Ensure proper lead termination for your specific voltage requirements to maintain optimal thermal performance and efficiency in the field. This motor is a drop-in replacement for many common fractional horsepower motors used in air handling and fluid management systems.

• Versatile 115/230V Operation: Supports multiple wiring configurations for standard 60Hz power supplies.
• NEMA 56C Frame: Standardized dimensions ensure seamless integration with various mechanical drives and mounting brackets.
• TEFC Enclosure: Prevents dust and moisture ingress, extending the life of the internal windings in mechanical rooms.
• High Torque Output: Optimized 1/3 HP 4-pole design delivers consistent performance under variable load conditions.
• Robust Build Quality: Features precision-ground shafts and high-grade insulation for long-term reliability in the field.

Common Questions

What are the wiring requirements for the VEL11301 on a 230V circuit?
The motor features a dual-voltage lead design. For 230V operation, follow the high-voltage diagram on the nameplate, typically involving series-connecting the run windings to manage the amperage draw efficiently.

Can this motor be mounted vertically in a rooftop unit?
Yes, the ball bearing system and C-Face design allow for various mounting orientations, though ensure the shaft remains protected from direct water ingress if mounted outdoors.

Is the VEL11301 compatible with variable frequency drives (VFDs)?
As a single-phase motor with a centrifugal start switch, this unit is designed for across-the-line starting and is not recommended for use with standard VFDs.
