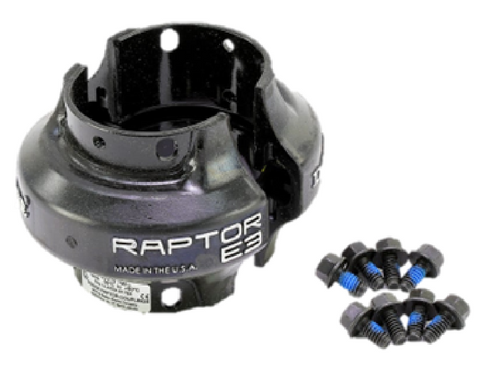

Dodge(Baldor) 015844 Raptor Element

The Dodge (Baldor) 015844 Raptor Element is a Size 3 split-tire elastomeric coupling element engineered for high-torque industrial power transmission. This natural rubber coupling element, also known as the E3 Raptor element, is a direct cross for the WE3 elastomeric element. Designed for direct attachment to shaft hubs without sliding components, it facilitates rapid installation and replacement, significantly reducing mean time to repair (MTTR) in critical drive systems.

This elastomeric coupling is built to handle angular misalignment up to 4°, parallel misalignment up to 0.1875 inches, and axial misalignment up to 0.3125 inches. By utilizing a flexible split-tire design, the 015844 Raptor element effectively dampens torsional vibrations and absorbs shock loads, protecting sensitive bearings and gearboxes from premature wear. With a rated torque of 371 lbf and a maximum speed of 7500 RPM, it is a versatile solution for motor-to-pump, compressor, and conveyor applications across a temperature range of -45°F to 220°F.

Key Benefits for Contractors

• Simplified Maintenance: The split-tire design allows for element replacement without moving the driving or driven equipment, preserving shaft alignment.
• Drive Protection: The high-grade natural rubber construction provides superior hysteresis properties to dissipate energy from vibration and impact.
• Optimized Compatibility: Designed for an outside diameter of 4 inches and an 8-bolt configuration for secure, balanced torque transfer.
• Severe Duty Performance: Accommodates significant shaft misalignment, reducing the structural load on connected machinery in suboptimal mounting conditions.

Common Questions

What is the difference between the 015844 and the WE3 element?
The Dodge 015844 is the technical cross-reference for the WE3 element, offering identical fitment and performance specifications within the Raptor series.

Does this element require lubrication during installation?
No, elastomeric coupling elements like the E3 Raptor are non-lubricated components, making them ideal for food processing or applications where contamination must be avoided.

What is the recommended bolt tightening torque for the Size 3 element?
The 8 bolts should be tightened to 147 in-lb to ensure the split-tire element is properly seated against the hubs for maximum torque efficiency.
