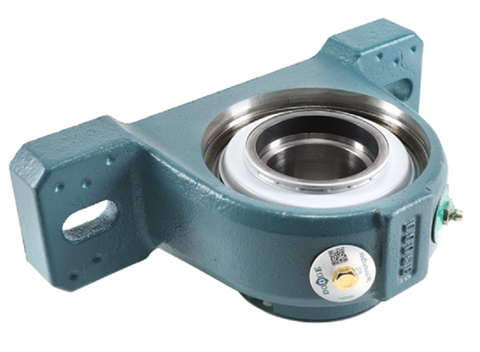

Dodge(Baldor) 747940 Bearing

The Dodge 747940, also known as the P2B-ISN-203FR, is a heavy-duty, 2-bolt pillow block bearing engineered for high-vibration applications and harsh industrial environments. Utilizing the Dodge ISN spherical roller bearing insert, this unit features the patented Imperial puller nut system, which simplifies installation and removal while providing a secure 360-degree grip on the shaft. This tapered bore bearing design eliminates the risk of shaft damage common with set-screw units. The triple-lip Trident seal provides superior protection against contamination ingress, making it a reliable solution for air-handling units and industrial conveyor systems. Designed for a 2-3/16 inch shaft diameter, the cast iron housing provides maximum structural integrity under radial and thrust loads. This unit is built to withstand high speeds and temperature fluctuations, ensuring consistent alignment and reduced mechanical wear in critical commercial and industrial HVACR mechanical systems.

• Imperial Adapter Mounting: Patented system allows for precise installation and easy removal, reducing downtime during maintenance cycles.
• Trident Triple-Lip Seals: High-performance sealing technology prevents grease washout and protects internal rollers from fine particulates and moisture.
• Ductile Iron Housing: Provides exceptional strength and impact resistance compared to standard gray iron housings.
• Expansion and Non-Expansion Capability: Built to accommodate thermal shaft expansion without sacrificing load capacity or stability.
• High Load Capacity: Spherical roller design manages combined radial and moderate thrust loads in high-torque applications.

Common Questions

How do you properly lubricate the P2B-ISN-203FR during service?
Technicians should use a high-quality lithium-complex grease. Lubricate the unit while it is running at operating temperature to ensure even distribution across the rollers and to purge old grease through the seals.

Will this bearing fit a standard 2-3/16 inch shaft without machining?
Yes, the Dodge 747940 is specifically designed for 2-3/16 inch shafts. The ISN adapter sleeve compensates for minor shaft tolerances, providing a concentric fit that reduces vibration.

Can this pillow block be used in high-heat rooftop exhaust applications?
The standard cast iron housing and factory-installed seals are rated for typical industrial temperature ranges. For extreme temperature applications, verify that the grease and seal material meet your specific CFM and thermal requirements.
