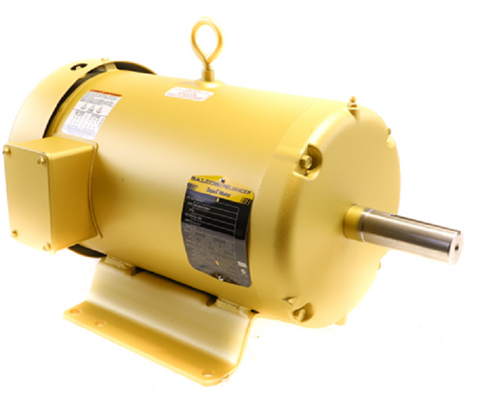

Dodge(Baldor) EM3707 Motor

The Baldor EM3707 is a high-performance 5HP industrial motor designed for continuous duty in demanding HVACR and industrial environments. This three-phase electric motor operates at a synchronous speed of 1800 RPM (1750 RPM full load) and features a robust NEMA 215T frame construction. Engineered as part of the Super-E line, it delivers NEMA Premium efficiency to reduce operational costs in applications such as centrifugal pumps, industrial fans, and air compressors. The TEFC (Totally Enclosed Fan Cooled) enclosure provides superior protection against dust and moisture, making it ideal for mechanical rooms or production floors. This unit is inverter ready, meeting NEMA MG1 Part 31.4.4.2 standards for variable frequency drive compatibility. Built with a heavy-gauge steel frame and high-quality ball bearings lubricated with Polyrex EM grease, the EM3707 ensures reliable torque and mechanical stability under varying load conditions. It supports 230/460V dual-voltage configurations to match standard site power requirements.

• NEMA Premium Efficiency: Optimized for energy savings and lower heat output during continuous operation.
• Inverter Duty Rated: Specifically designed to handle the voltage spikes and thermal demands of VFD control systems.
• Industrial Durability: Features a TEFC enclosure and rigid base mounting for maximum stability in high-vibration environments.
• Versatile Compatibility: Standardized 215T frame and 1.125-inch shaft diameter allow for seamless integration into existing belt-driven or direct-drive equipment.
• Wide Operating Temperature: Class F insulation and Polyrex EM grease support reliable performance in ambient temperatures up to 40°C.

Is the Baldor EM3707 suitable for variable speed applications?
Yes, this motor is inverter ready per NEMA MG1 standards, allowing it to be used with variable frequency drives for improved process control and energy management.

What are the wiring requirements for 230V vs 460V?
The motor features 9 leads with a standard connection diagram provided on the nameplate, allowing technicians to configure the internal windings for either high or low voltage three-phase service.

Can this motor be mounted vertically?
While designed with a rigid foot mount for horizontal installation, the DE (Drive End) bearings are locked to provide additional stability; however, always verify specific fan or pump flange requirements for vertical orientations.
