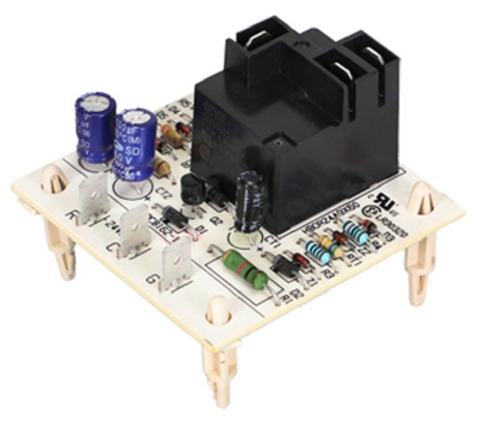

Bard HVAC 8201-056BX Control Board

The Bard HVAC 8201-056BX Control Board is a specialized 24V 6.9A Blower Control Board engineered for precise sequencing of blower motor operations in residential and light commercial equipment. As a direct OEM replacement for S8201-056 and 8201-056, this board ensures the control circuit maintains exact voltage and amperage tolerances required for Bard wall-mount units and furnaces. Troubleshooting blower failures often leads to faulty relays or logic on the Bard terminal board; replacing with an authentic 8201-056BX ensures that high-limit safety loops and blower-off delay timings remain within factory specifications. Designed for rugged field performance, this component manages the inductive load of the blower motor efficiently, preventing premature contact wear and ensuring stable airflow across the heat exchanger or evaporator coil.

Key Benefits for Technicians:

• Universal Compatibility: Serves as the factory-authorized direct replacement for 8201-056, eliminating the need for field modifications or bracket fabrication.
• Optimized Load Handling: Rated at 6.9 Amps to provide a reliable buffer for standard blower motor start-up inrush currents.
• Logic Regulation: Integrates seamlessly with existing 24V transformers and thermostat wiring to maintain system timing and sequencing.
• Industrial Build Quality: Constructed with high-grade traces and components to resist vibration and thermal stress common in HVAC cabinets.

Common Questions:

Can I use a generic blower relay instead of the 8201-056BX?
While generic relays exist, the 8201-056BX features specific pin-out configurations and logic for Bard systems. Using a genuine Bard HVAC control board ensures the safety circuits and blower delays function according to the original equipment design.

What are the symptoms of a failing blower control board?
Common indicators include the blower motor failing to start despite a call for cooling/heating, the motor running continuously even when the thermostat is satisfied, or intermittent operation caused by a sticking onboard relay.

Is this board compatible with both AC and Heat Pump units?
Yes, as long as the original part number matches 8201-056 or S8201-056, this board is designed to handle the blower control logic across various Bard air handlers and package units.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
