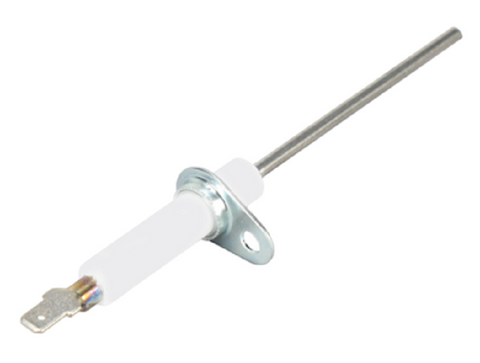

Bard HVAC 8554-019BX Flame Sensor

The Bard HVAC 8554-019BX Flame Sensor is a high-precision OEM component engineered for critical burner flame supervision in Bard environmental systems. Featuring a durable .114-inch rod, this sensor is duty-rated for high-cycle industrial and residential applications. The 8554-019BX is functionally identical to the Bard 8554-019, providing a direct-drop replacement that ensures seamless communication with the furnace control board. When the ignition sequence initiates, the flame rectification process generates a microamp signal that prevents nuisance lockouts and gas valve failure. For contractors managing Bard wall-mount units or packaged systems, maintaining a clean 8554-019BX sensor is essential for avoiding ignition failure symptoms common in soot-heavy or high-moisture environments. This OEM Bard furnace part is built with high-temperature ceramics to withstand thermal shock and electrical resistance over localized heating cycles.

Key Benefits for Technicians

• Direct OEM Replacement: Fully interchangeable with Bard part number 8554-019 for simplified inventory management.
• Optimized Signal Strength: The .114" diameter rod provides the necessary surface area to maintain a stable microamp signal back to the IFC.
• Reduced Service Callbacks: Using genuine Bard replacement parts ensures compatibility with factory specifications for flame sensing thresholds.
• Robust Environmental Resistance: Constructed to resist carbon buildup and oxidation in high-heat burner assemblies.

Common Questions

Why is my Bard burner shutting off immediately after ignition?
A common cause is a fouled or failing Bard 8554-019BX flame sensor. If the control board does not detect a microamp signal within the short flame-proving window, it will close the gas valve as a safety protocol.

Is the 8554-019BX compatible with older Bard units?
Yes, the 8554-019BX is the direct replacement for the legacy 8554-019. It is used across various Bard HVAC configurations that require a .114 rod diameter for flame rectification.

How do I test this flame sensor in the field?
Set your multimeter to DC microamps (µA) and wire it in series with the sensor lead. A healthy Bard flame sensor should typically provide a steady reading above 1.0 µA, depending on the specific model of the control board.
