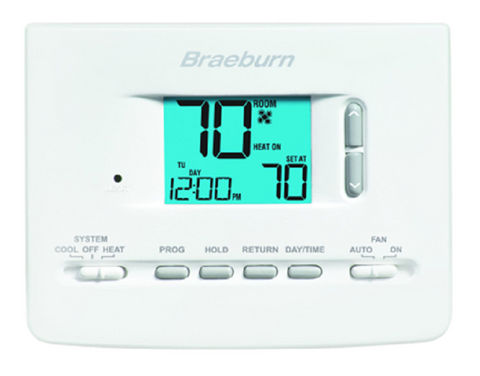

Braeburn Systems 2020NC Thermostat

THERMOSTAT 5-2 DAY PROGRAMMBLE

2020NC is the direct replacement for 1F86EZ-0251

Braeburn 2020NC Builder Series Thermostat – 5-2 Day Programmable, 1H/1C, Battery or Hardwired Power

Upgrade your home comfort with the Braeburn 2020NC Builder Series Thermostat—a versatile, user-friendly thermostat designed for both conventional and heat pump systems. This model offers flexible programming options and reliable performance, making it an ideal choice for residential builders, property managers, and homeowners alike.

Key Features:

• Model: 2020NC

• Series: Builder

• System Compatibility: Conventional and Heat Pump

• Stages: 1 Heat / 1 Cool

• Programming Options: 7 Day, 5-2 Day, or Non-Programmable

• Display: Bright blue backlit 2 sq. in. screen

• Power Source: Battery-powered or hardwired for flexibility

• Terminals: Rc, Rh, W1, Y1, G, O, B, C

• Adjustable Temperature Limits: Yes

• Keypad Lockout: No

• Auto Changeover: No

• Remote Sensor Support: No

• Fan Control: Non-programmable, no circulating fan option

• Humidity Control: Not supported

• Fresh Air Terminal: Not available

• Dry Contact Input: Not included

Designed without commercial mode or advanced features like humidity control, the 2020NC focuses on essential, energy-efficient temperature control. Its bright blue display and intuitive interface make it easy to read and use, even in low-light conditions.

Perfect for:

• Residential homes

• Rental properties

• Basic retrofit or new construction projects

Whether you're seeking simple functionality or scalable performance, the Braeburn 2020NC Thermostat offers the reliability and ease-of-use you need at a builder-friendly price.
