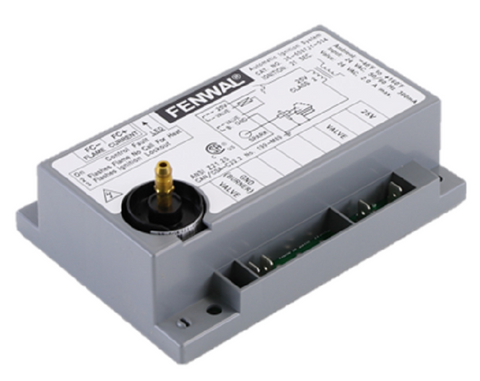

Fenwal 35-6087J1-034 Ignition Module

Fenwal 35-6087J1-034 Ignition Module – 24VAC Direct Spark OEM Control Board

The Fenwal 35-6087J1-034 Ignition Module is a genuine OEM ignition control board designed for reliable and precise furnace operation. This 24VAC direct spark CSA-certified module delivers efficient ignition control for natural, LP, or manufactured gas appliances. Built to meet rigorous industrial and residential standards, it ensures safe startup, flame detection, and system performance.

Product Highlights:

• Brand: Fenwal

• Model Number: 35-6087J1-034

• Type: OEM Ignition Module / Control Board

• Voltage: 24 VAC

• Input Power: 18–30 VAC, 50/60 Hz (Class 2 Transformer)

• Input Current: 300 mA @24 VAC (with gas relay energized)

• Main Gas Valve Rating: 2.0A max continuous

• Operating Temperature: -40°F to unspecified max

• Storage Temperature: -40°F to unspecified max

• Flame Sensitivity: 0.3 µA minimum

• Flame Failure Response / Re-ignition Time: 0.8 seconds max

• Flame Detector Self-check Rate: Once per second minimum

• Spark Rate: Remote sense (50/60 Hz), Local sense (25/30 Hz)

• Moisture Resistance: Conformal coated for operation up to 95% R.H. (non-condensing)

• Dimensions (L×W×H): 4.92 × 3.32 × 2.71 inches (12.5 × 8.43 × 6.88 cm)

• Weight: 8 oz (224 g)

• Ignition Tries: One or three-try versions available

• Trial for Ignition Periods: 4, 6, 8, 10, or 15 seconds

• Prepurge / Interpurge Timings: None, 15, or 30 seconds available

Description:
The Fenwal 35-6087J1-034 Ignition Module is engineered to provide precise and reliable control for gas-fired furnaces. With robust flame detection, rapid ignition response, and flexible timing options, this OEM module ensures safe and efficient furnace operation. Its compact design, conformal coating, and wide compatibility make it ideal for industrial, commercial, and residential heating systems. Available in multiple ignition try and purge timing configurations to meet specific system requirements.
