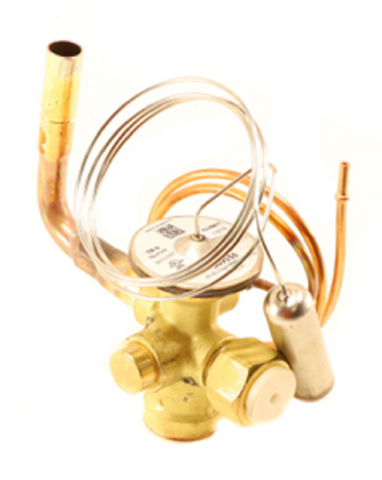

Nordyne 669550R TXV Valve

The Nordyne 669550R is a high-precision HVAC thermostatic expansion valve designed specifically for systems with a 1.5 to 2-ton capacity. Engineered for compatibility with R22 refrigerant, this TR6 TXV valve functions as the primary metering device, maintaining the optimal pressure drop required to transition liquid refrigerant into a saturated vapor. As the direct replacement for the legacy Nordyne 669550, this updated component ensures seamless integration with a wide variety of Nordyne and Intertherm residential coils, including C5 and B5 series units.

For contractors servicing 1.5 to 2-ton cooling systems, this valve is critical for preventing compressor slugging and evaporator starvation. By accurately modulating refrigerant flow based on the evaporator's heat loadùsensed via the external bulbùthe 669550R provides consistent superheat control. This level of mechanical regulation is superior to fixed orifices, especially in high-ambient conditions where precise thermal expansion valve operation is necessary to maintain system efficiency and protect the compressor from liquid floodback. The robust brass construction and high-grade diaphragm are designed for long-term reliability in demanding residential split systems and mobile home units.

Key Benefits

• Direct OEM Replacement: Replaces Nordyne 669550 without the need for line modifications in compatible TR6 series coils.
• Precision Superheat Control: Automatically adjusts refrigerant flow to prevent evaporator freeze-ups and ensure maximum heat transfer.
• Optimized for R22 Systems: Specifically calibrated for the pressure-temperature characteristics of R22 refrigerant in 1.5T to 2T applications.
• Increased System Efficiency: Maintains the ideal delta across the coil, helping older systems reach their maximum rated SEER performance.
• Durable Internal Metering: Features heavy-duty internal components to resist clogging and mechanical fatigue over years of high-cycle operation.

Common Questions

What are the signs that my Nordyne TXV valve is failing?
Common indicators of a failing 669550R expansion valve include "hunting" (evidenced by sweating suction lines or fluctuating pressures), ice buildup on the evaporator coil despite a clean filter, or high superheat accompanied by low suction pressure, suggesting the valve is stuck closed.

Can I use this R22 valve in an R410A system?
No, R22 expansion valves are calibrated for significantly lower operating pressures than R410A valves. Using this valve with R410A will lead to severe metering inaccuracies and potential system failure.

Is the sensing bulb position important for this TR6 valve?
Crucially. For optimal performance, the sensing bulb must be securely strapped to the horizontal suction line at the 10 or 2 oÆclock position and properly insulated to ensure it only reacts to the temperature of the refrigerant line, not the ambient air.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
