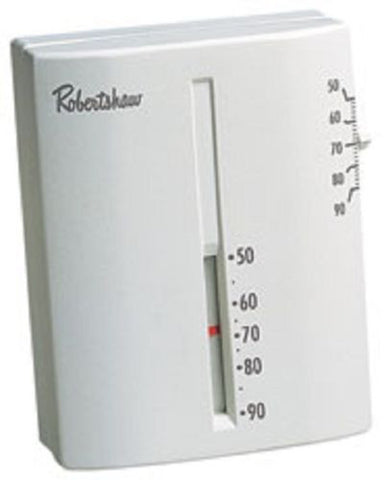

Robertshaw 9204V Thermostat

The Robertshaw 9204V Thermostat is a heavy-duty 24V 1-heat mechanical thermostat engineered for high-reliability performance in gas, electric, and millivolt heating systems. As a center-piece of the Robertshaw 9200 Series, this 2-wire vertical thermostat is the industry standard for contractors replacing outdated mercury-based units. The mercury-free mechanical switch eliminates the need for precision leveling during installation, while the SPST switch type ensures a positive connection for cycling 24V AC heating equipment. With its vertical mounting base and J-box compatibility, the 9204V is optimized for rapid field replacement, effectively consolidating inventory by replacing over 50 competitive models. The integrated heavy-duty adjustable heat anticipation allows technicians to fine-tune system cycles, preventing temperature overshoot and optimizing fuel efficiency for the end-user.

Technical Benefits for the Trade

• Universal Replacement: Designed to replace Uni-Line 275-40A and several dozen competitive 1-heat vertical thermostats, reducing the need for multiple truck stock items.
• Contractor-Friendly Install: Features a hands-free wiring wall base and requires no sub-base, significantly cutting down on-site labor time.
• Enhanced System Control: Includes a positive-off switch for definitive system shutdown and adjustable heat anticipation for precise caloric discharge timing.
• Wide Compatibility: Rated for 24V AC at 2 Amps max, making it suitable for standard low voltage heat-only systems.

Common Questions

Is the Robertshaw 9204V compatible with 750mV millivolt systems?
Yes, this model is specifically rated for millivolt compatible heating applications, such as wall heaters or floor furnaces, as well as standard 24V residential gas and electric furnaces.

Does this unit require batteries or a C-wire?
No. As a mechanical thermostat, the 9204V does not require batteries or a common wire for operation; it functions via a simple 2-wire (R and W) connection.

Can I use this for a 1-stage cooling system?
No, the 9204V is a heat-only thermostat. For heat/cool applications, a 9200 series model with a cooling switch, such as the 9200V or 9200H, should be utilized.
