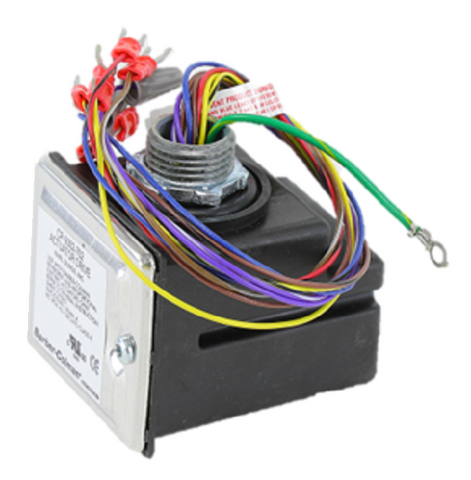

Schneider Electric (Barber Colman) CP-9302-702 Actuator Drive

Actuator Drive, 4 to 20mA, Power is Supplied directly from Actuator

Schneider Electric (Barber Colman) CP-9302-702 Actuator Drive – Proportional Control for Electric Actuators

The Schneider Electric CP-9302-702 Actuator Drive is a versatile, high-performance actuator drive designed for precise control in industrial applications. It processes a variable input signal from a controller and provides proportional control for electric gear train actuators, ensuring smooth operation and accurate system performance. Ideal for a range of applications, the CP-9302-702 is factory preset for current input and offers flexibility with its adjustable span and optional override input.

Key Features:

✅ Multiple Voltage Options – Compatible with 24/120/240 VAC power inputs, offering flexibility for various systems.
✅ Precise Control – Factory preset 4-20 mAdc input ensures accurate control, with the ability to adjust span as needed.
✅ Override Input Option – Optional override input for external control in specific applications that require input signal manipulation.
✅ Adjustable Span – Easy to adjust span and deadband for custom applications and fine-tuned control.
✅ Versatile Operation – Built-in jumpers and adjustable potentiometers allow field adjustments of input signal, deadband, and start point.

Product Overview:

The CP-9302-702 actuator drive is a crucial component for systems requiring proportional control of electric actuators. It is specifically designed to handle a 4-20 mAdc input, and its adjustable span and factory preset configuration make it ideal for seamless integration into your systems. This actuator drive is engineered to deliver reliable, efficient operation, minimizing downtime and ensuring high performance across diverse applications.

Applications:

• Industrial Automation – Provides precise actuator control in manufacturing and processing systems.

• HVAC Systems – Ideal for use in heating, ventilation, and air conditioning systems that require accurate actuator regulation.

• Energy Management Systems – Ensures optimal performance and energy savings in automated building systems.

Technical Specifications:

• Power Supply: 24/120/240 VAC

• Input Signal: 4-20 mAdc

• Input Span: Adjustable

• Deadband Adjustment: Field-adjustable

• Override Input: Optional connection for external override

• Factory Preset Input: 4-20 mAdc

• Voltage Input: Available in current or voltage (factory preset for current)

• Adjustable Potentiometers: For fine-tuned system setup and adjustments

The Schneider Electric CP-9302-702 Actuator Drive is an essential tool for any system requiring high-quality, proportional control of electric actuators, offering precision, flexibility, and ease of installation.

Order now for fast shipping and competitive pricing for all your industrial control system needs!
