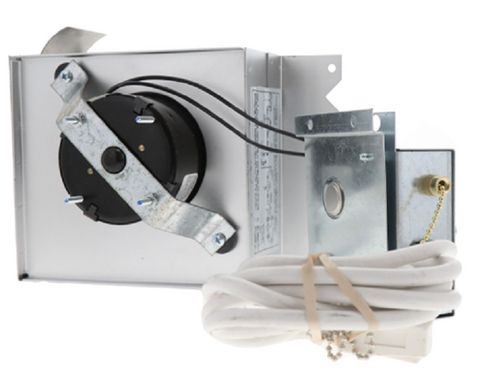

Williams 2302 Blower Package

Ensure maximum thermal efficiency and air distribution in your client’s residence with the Williams 2302 Blower Package. Engineered specifically for Williams 22038 and 30038 series direct-vent furnaces, this high-capacity assembly delivers a rated 135 CFM airflow to eliminate stratification and cold spots. This single-speed blower accessory features a fully automatic fan switch, allowing for hands-off operation that cycles based on the unit's internal temperature. The package includes a pre-wired 6-foot power cord for standard 115V grounded outlets, though it can be field-wired to meet local electrical codes or NEC standards. Designed for side-mount installation, the Williams furnace blower kit integrates seamlessly without impeding the gravity-fed combustion process, ensuring heat delivery continues even during power outages. For professional installers, the 2302 blower kit provides a critical upgrade for 22,000 and 30,000 BTU models, optimizing heat distribution through forced-air convection while maintaining a low-decibel operational profile.

Key Benefits

• Optimized Airflow: Delivers 135 CFM to force warm air downward, significantly improving room-wide convection heating efficiency.
• Automatic Temperature Control: Integrated thermal sensor automatically activates the fan switch once the heat exchanger reaches operating temperature.
• Broad Compatibility: Drop-in fit for Williams 22,000 and 30,000 BTU direct-vent gas heaters (Models 22038, 30038).
• Dual-Power Options: Comes with a standard 115V 3-prong plug but supports field wiring for permanent HVAC installation.
• Continuous Safety: Does not obstruct the furnace's gravity-venting path, ensuring safe operation if power is lost.

Common Questions

Can the Williams 2302 Blower be used with other brands of wall furnaces?
No, this unit is specifically calibrated and mounting-compatible only with Williams Direct-Vent Gravity Wall Furnaces in the 22,000 and 30,000 BTU range. Using it on non-specified units can lead to mounting failure or electrical issues.

Is an external thermostat required for the blower to run?
No, the blower uses an internal automatic fan switch that responds to the heater's internal casing temperature. It operates independently of the wall thermostat used to trigger the heater’s gas valve.

What maintenance is required for the blower motor?
To maintain peak blower motor performance and longevity, the motor should be oiled annually with SAE 20 high-temperature oil, specifically at the designated oil ports.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
