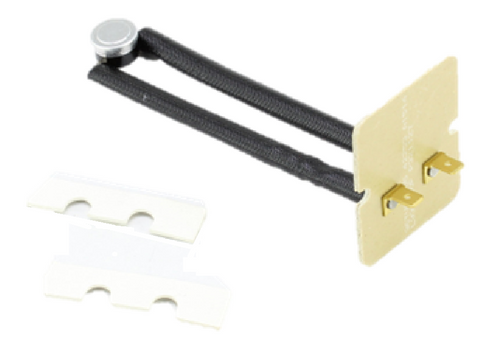

Williams 7734 Limit Switch

The Williams 7734 Limit Switch is a critical OEM replacement part engineered for technical precision in Williams Comfort Products wall heaters and furnaces. Designed with a 5-inch sensor probe, this automatic reset limit switch monitors internal plenum temperatures to prevent thermal overstress. It features a fixed setpoint range of 270°F to 330°F, ensuring the gas valve circuit is interrupted if temperatures exceed safe engineering parameters. This component is the verified 7734 direct replacement for P321127, maintaining the original equipment manufacturer’s safety sequence. Built for high-duty cycle reliability, it provides an exact mechanical fit for Williams furnace troubleshooting and professional maintenance. Utilizing an automatic reset limit allows the system to resume operation once temperatures normalize, reducing unnecessary service calls while protecting the heat exchanger from premature failure.

Key Benefits for Contractors:

• Direct OEM Match: Provides an exact drop-in replacement for Williams P321127 without the need for mounting modifications.
• High-Temperature Accuracy: Rated for 270°F–330°F to ensure precise thermal protection and code compliance.
• Versatile Application: Compatible with a wide range of Williams Comfort Products furnaces and gravity wall heaters.
• Industrial Build Quality: Constructed to OEM equipment specifications for consistent bimetal plate response and electrical continuity.
• Simplified Installation: Standard 5-inch limit switch depth ensures proper positioning within the airflow path for accurate sensing.

Common Technical Questions:

Is the Williams 7734 an automatic or manual reset switch?
The 7734 limit switch features an automatic reset mechanism, meaning it will re-close the circuit once the furnace temperature drops below the lower threshold of the 270°F–330°F range.

What causes a Williams furnace limit switch to trip frequently?
Frequent tripping usually indicates restricted airflow, such as a clogged filter, obstructed return, or an oversized gas orifice, causing the 270°F–330°F limit to be reached.

Can I use a shorter probe if the 5-inch sensor is out of stock?
No, the 5-inch sensor length is calculated by Williams Comfort Products to reach the specific thermal zone of the heat exchanger; using an incorrect length can lead to delayed tripping or unsafe operating conditions.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
