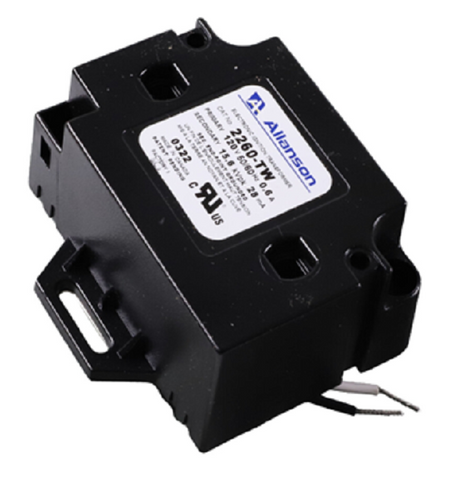

Allanson Transformers 2260-TW Transformer

120Vac Supply Voltage, 15,600Vac Secondary Voltage, One End Ground, Industrial Gas Ignitor with Mounting Tabs with Traditional Bottom Exit Primary Pigtails

Allanson 2260-TW Transformer – Electronic Gas Ignitor, 120V Input, 15.6kV Output

The Allanson 2260-TW Electronic Ignitor Transformer is a high-performance ignition solution engineered for dependable operation in industrial, commercial, and residential gas-fired systems. Designed with mounting tabs and traditional bottom-exit primary pigtails, this unit allows for quick, easy installation and seamless system conversions without clumsy connections.

Delivering a 120VAC primary voltage and a powerful 15,600V peak secondary voltage, the 2260-TW offers reliable spark ignition for various gas burner applications. Built to meet EMI/RFI compliance standards, this compact and energy-efficient ignitor is perfect for constant-duty environments requiring consistent performance and extended service life.

Key Features:

• Model: 2260-TW

• Brand: Allanson

• Type: Electronic Ignitor Transformer

• Primary Voltage: 120 VAC, 50/60 Hz

• Secondary Voltage: 15.6 kV peak

• Current: 28 mA

• Mounting: 3-Way Mounting with Tabs

• Primary Leads: Traditional Bottom Exit Pigtails

• Grounding: One End Ground

• HV Terminal: Rajah Connector

• Application: Gas Ignition Systems

Environmental Ratings:

• Operating Temperature: -30°C to 40°C

• Storage Temperature: -40°C to 80°C

• Humidity: 90% Relative Humidity (Non-Condensing)

• Loading Air Gap: 1/16" – 3/16"

Benefits:

• Long-lasting and energy-efficient design

• Fast, secure installation with no special tools required

• Meets stringent EMI/RFI requirements

• Compatible with various gas-fired ignition applications

• Optional secondary connector kit available for added flexibility

The Allanson 2260-TW Ignitor Transformer is trusted by professionals for its durability, performance, and ease of use, making it the ideal ignition source for a wide range of gas systems.

Note: Always confirm compatibility with your system specifications before installation.
