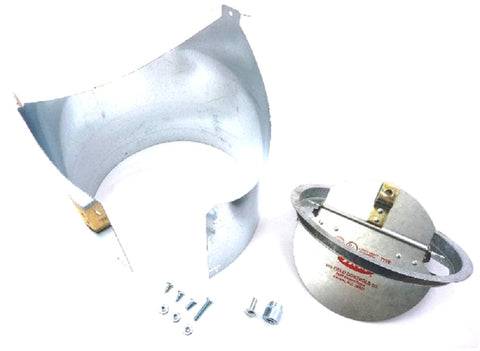

Armstrong Furnace R01207B001 Draft Control

The Armstrong Furnace R01207B001 Draft Control is a critical OEM replacement part designed to regulate the venting efficiency of residential heating systems. This barometric draft regulator maintains consistent overfire draft by stabilizing the vacuum pressure within the flue, preventing excessive heat loss and ensuring proper combustion air ratios. Built for durability in high-cycle environments, the R01207B001 utilizes a precision-balanced gate to compensate for fluctuations in chimney draft caused by wind or temperature changes. As a technician, ensuring the correct static pressure is vital for preventing pilot outages and optimizing the AFUE rating of the furnace. This furnace draft inducer control is compatible with specific Armstrong Air and Concord units. Proper calibration of this component reduces flue gas temperatures and minimizes stress on the heat exchanger, making it a standard requirement for maintaining system operating specifications and long-term HVAC performance.

Key Technical Benefits

• Precision Draft Regulation: Maintains stable chimney draft to prevent inefficient fuel consumption.
• OEM Compatibility: Direct replacement for Armstrong Furnace parts, ensuring exact fit and alignment.
• System Efficiency: Reduces heat loss through the venting system during the off-cycle.
• Durable Construction: Engineered to withstand high-temperature flue gases without warping.
• Enhanced Combustion: Supports consistent burner flame stability for safer operation.

Common Questions

How do I know if my draft control needs replacement?
If you notice erratic flame patterns, excessive noise from the flue, or soot accumulation, the barometric damper may be stuck or improperly balanced.

Is the R01207B001 compatible with other brands?
While designed for Armstrong Air, it may fit other Allied Air brands like Concord or Ducane; always verify the part number against your specific model's wiring diagram and parts list.

Does this part require manual adjustment?
Yes, for optimal HVAC efficiency, the counterweight should be set using a manometer to match the manufacturer's static pressure requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
