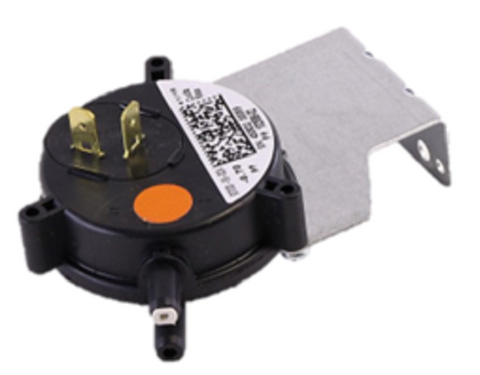

Armstrong Furnace R102699-02 Pressure Switch

The Armstrong Furnace R102699-02 Pressure Switch is an essential OEM replacement part designed for precise combustion monitoring in high-efficiency Armstrong Air furnaces. This SPST (Single Pole Single Throw) pressure switch is factory-calibrated to a setpoint of -.70" WC, ensuring the inducer motor generates sufficient static pressure before allowing the ignition sequence to proceed. Engineered with dual 1/4" barb connections, this component provides a secure interface for vacuum lines, preventing nuisance trips and furnace pressure switch lockout codes (typically 2 or 3 flashes). As a direct genuine Armstrong HVAC part, it maintains the original equipment’s safety profile and airflow specifications. For contractors performing heat exchanger diagnostics or replacing failed Honeywell or Cleveland Controls equivalents, this R102699-02 ensures the negative pressure threshold is accurately sensed, facilitating reliable furnace burner ignition and safe venting of flue gases.

• Automatic Safety Integration: Prevents gas valve activation if venting or combustion air is obstructed.
• Precise -.70" WC Calibration: Specifically tuned to Armstrong’s blower and inducer performance curves.
• Drop-in Compatibility: Features standard dual 1/4" barb ports for fast field installation without modifying vacuum tubing.
• Industrial Durability: Withstands the thermal cycling and high-moisture environments typical of high-efficiency gas furnaces.

How do I troubleshoot an R102699-02 pressure switch error?
First, inspect the inducer motor for proper RPM and clear the 1/4" vacuum lines of any moisture or debris. Use a manometer to verify if the draft exceeds the -.70" WC setpoint during the pre-purge cycle. If the pressure is sufficient but the SPST contacts remain open, the switch requires replacement.

Can I use a universal pressure switch instead of this OEM part?
While universal switches exist, using a genuine R102699-02 is recommended to ensure the setpoint matches the manufacturer's safety specifications exactly, preventing improper combustion or premature component wear.

What causes this switch to fail?
Common failure points include diaphragm fatigue over several heating seasons, cracked vacuum ports, or internal contact oxidation. Always check for a clogged condensate trap or restricted flue before assuming the switch is faulty.
