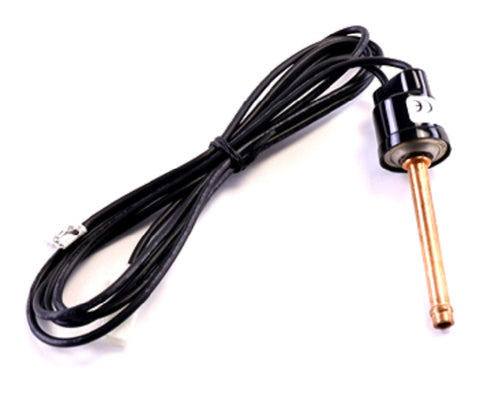

Armstrong Furnace R45032-001 Pressure Switch

The Armstrong Furnace R45032-001 Low Pressure Switch is a critical safety component designed for precise monitoring of system refrigerant pressure. This SPST pressure switch operates on a 10/30# logic, functioning as a normally closed control that opens when pressure drops below the 10 PSI cutout setpoint and resets when pressure reaches 30 PSI. Engineered for compatibility with Armstrong, Air Ease, and Concord HVAC units, this low-pressure cutout switch prevents compressor damage due to loss of charge or evaporator coil freeze-ups. The robust construction ensures reliable performance in demanding residential and light commercial applications. Technicians should verify the pressure switch ratings and terminal configurations to ensure a direct fit for the OEM R45032-001 specification. This field-replacement part is essential for maintaining the integrity of the refrigeration cycle and ensuring proper system cycling under varying thermal loads.

Key Benefits

• Precision Pressure Calibration: Features fixed 10 PSI cutout and 30 PSI cut-in setpoints for accurate low-pressure protection.
• System Reliability: Protects the compressor against vacuum operation and overheating caused by refrigerant loss.
• Direct OEM Matching: Designed as an exact fit for Armstrong Furnace parts, reducing installation time and ensuring electrical compatibility.
• Durable Internal Diaphragm: Built to withstand repeated cycles and vibration common in HVAC compressor compartments.

Common Questions

Is the R45032-001 compatible with R-410A systems?
Yes, this switch is designed to monitor low-side pressures within specific HVAC systems; however, technicians must verify the 10/30# setpoints match the manufacturer's low-side protection requirements for the specific refrigerant type.

What causes a low pressure switch to trip frequently?
Frequent tripping is typically indicative of a refrigerant leak, a restricted filter drier, or a malfunctioning expansion valve (TXV/piston), rather than a failure of the switch itself.

Can I bypass this switch for testing purposes?
While a temporary bypass can be used for electrical troubleshooting, the system must never be left operating without a functional low pressure switch as it risks catastrophic compressor failure.
