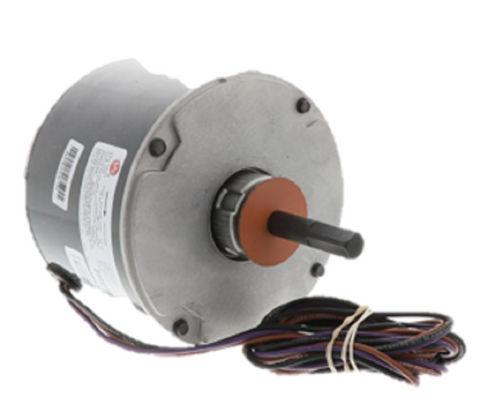

Armstrong Furnace R47430-002 Fan Motor

As a technician in the field, you know that a failed condenser or blower motor can take a client’s system down during the peak of the season. The Armstrong Furnace R47430-002 Fan Motor is a direct OEM replacement motor designed for specific Armstrong Air and furnace applications requiring a 208-230V fan motor. This 1/4 HP HVAC motor operates at 1075 RPM, providing the consistent torque and airflow necessary for efficient heat exchange and system cooling. Its PSC motor design ensures high reliability in demanding residential and light commercial environments.

When diagnosing a faulty assembly, always verify your motor specs including voltage, frame size, and rotation. The R47430-002 is engineered for energy-efficient HVAC performance and features durable internal windings to prevent premature burnout. Whether you are performing a routine furnace motor replacement or troubleshooting a total system failure, this genuine part maintains the factory-specified air balance, protecting the compressor and heat exchanger from thermal stress. Ensure you check the run capacitor and lead wire configuration during installation to guarantee seamless integration with the existing control board.

Key Benefits for the Contractor:

• OEM Compatibility: Precision-matched for Armstrong Air R47430-002 systems, eliminating the mounting issues common with "universal" motors.
• Optimized Airflow: The 1075 RPM speed rating ensures the unit meets original static pressure requirements for optimal efficiency.
• Rugged Construction: Built to withstand high-cycling demands and varied ambient temperatures in HVAC internal components.
• Standard Electrical Specs: Operates on standard 208-230V power, making it a drop-in solution for most compatible furnace and air handler units.
• Quiet Operation: Balanced rotor and precision bearings reduce vibration and noise complaints from homeowners.

Common Questions:

What are the symptoms of a failing Armstrong fan motor?
Technicians usually identify a failing Armstrong furnace fan motor by checking for a humming sound without rotation, excessive bearing noise, or high amperage draws that trip the circuit breaker.

Can I use a universal 1075 RPM motor instead of the R47430-002?
While a 1/4 HP 1075 RPM motor with similar specs might fit, using the OEM replacement motor is recommended to ensure correct lead lengths, mounting shaft dimensions, and electrical plug compatibility.

Does this motor require a new run capacitor?
It is standard field practice to replace the capacitor whenever installing a new condenser fan motor to ensure the start-up torque is within factory tolerances and to prevent motor overheating.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
