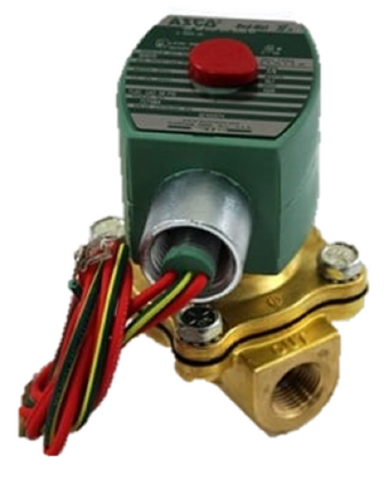

ASCO 8210G74 Solenoid Valve

Valve, Solenoid, 2 Way Normally Closed, 3/8", NPT, 120Vac, 2.8 Cv (150,000 btu/hr) 0-50 PSI Gas Pilot Operated Gas Shutoff Brass Body with NBR Seals and Nema 4X Enclosure

ASCO 8210G74 Solenoid Valve – 3/8" 2-Way Normally Closed, 120VAC, Pilot Operated Gas Shutoff Valve

The ASCO 8210G74 RedHat Solenoid Valve is a high-performance, general-purpose solenoid valve designed to control the flow of gas in a wide range of industrial applications. Featuring a 3/8-inch NPT port, this 2-way normally closed valve operates on 120VAC and delivers a flow coefficient of 2.8 Cv (150,000 BTU/hr). It supports pressure ranges from 0 to 50 PSI, making it ideal for pilot-operated gas shutoff tasks.

Engineered with a durable brass body, NBR seals, and a NEMA 4X weatherproof enclosure, this valve provides long service life, low internal leakage, and reliable operation in demanding environments.

🔧 Key Features:

• Type: 2-Way, Normally Closed

• Port Size: 3/8” NPT

• Operating Voltage: 120 VAC

• Pressure Range: 0–50 PSI

• Flow Rate: 2.8 Cv (150,000 BTU/hr)

• Construction: Brass body with NBR (Buna-N) seals

• Enclosure: NEMA 4X for harsh environments

• Operation: Pilot operated for reliable shutoff

• Compliance: Lead-free options available for Safe Drinking Water Act

⚙️ Compatible Applications:

• Gas shutoff systems

• Car washes

• Air compressors

• Pump control systems

• Laundry equipment

• General industrial water and air/gas control

Whether you're replacing an existing valve or building a new system, the ASCO 8210G74 delivers dependable performance with superior fluid and gas control.
