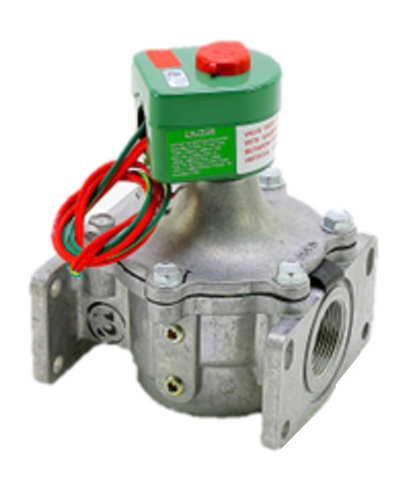

ASCO 8214260CSA Solenoid Valve

Valve, Solenoid, 2 Way Normally Closed, 1 1/4", NPT or Flange, 120Vac, 32 Cv 1,725,500 btu/hr 0-5 PSI Fuel Gas Shutoff Valve with Aluminum Body, NBR Seals, and Nema 1 Enclosure

ASCO 8214260CSA Solenoid Valve – 2-Way Normally Closed Fuel Gas Shutoff Valve, 1-1/4", 120V

The ASCO 8214260CSA is a high-performance 2-way normally closed solenoid valve engineered for fuel gas shutoff applications. Designed with durability and safety in mind, this valve features a 1-1/4" NPT or flange connection, an aluminum body, NBR seals, and a NEMA 1 general-purpose enclosure. Its internal pilot-operated design supports 0-5 PSI fuel gas service, with a high Cv rating of 32, capable of handling up to 1,725,500 BTU/hr.

🔧 Key Features:

• ✅ Valve Type: 2-Way, Normally Closed

• ✅ Operation: Internal Pilot Operated

• ✅ Inlet Size: 1-1/4" NPT or Flange

• ✅ Pressure Range: 0-5 PSI

• ✅ Voltage: 120 VAC

• ✅ Flow Coefficient (Cv): 32

• ✅ BTU/hr Rating: Up to 1,725,500

• ✅ Body Material: Rugged Aluminum

• ✅ Seal Material: NBR (Nitrile)

• ✅ Enclosure: NEMA 1 – General Purpose

• ✅ Mounting Orientation: Universal

• ✅ Media: Fuel Gas

⚙️ Enhanced Safety & Monitoring (Suffix C Option):

• Visual position indicator shows "Open" or "Shut" via a transparent holder

• Electrical proof-of-closure via single-pole reed switch (1 Amp)

• Integral 1/8" NPT downstream test tap for routine system testing

✅ Why Choose the ASCO 8214260CSA?

Built for critical fuel gas applications, the ASCO 8214260CSA ensures leak-tight shutoff, reliable control, and enhanced safety features. Its double-disc design with overtravel provides redundant sealing, while the visual and electrical indicators offer clear operational feedback—ideal for commercial HVAC systems, industrial burners, and boiler safety systems.

Ensure safe, efficient, and compliant gas control with the ASCO 8214260CSA solenoid valve—trusted by professionals for fuel gas shutoff reliability.
