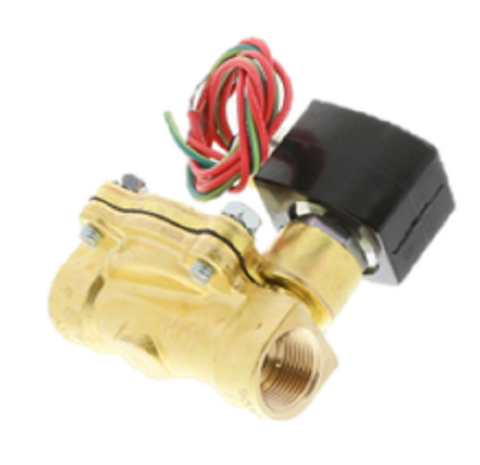

ASCO EF8210G3 Valve

Valve, Solenoid, 2 Way Normally Closed, 3/4", NPT, 120Vac, 6.5 Cv 5-250 PSI Air 5-150 PSI Water 5-100 PSI Light Oil Pilot Operated General Service Brass Body with NBR Seals and Explosion Proof Enclosure

ASCO EF8210G3 Solenoid Valve – 3/4" NPT, 2-Way Normally Closed, 120V AC, Explosion-Proof

The ASCO EF8210G3 is a high-performance pilot-operated 2-way solenoid valve engineered for general service applications involving air, water, light oil, and inert gas. This explosion-proof valve features a durable brass body and NBR seals, making it suitable for a wide range of industrial environments. With a 3/4" NPT port size and 6.5 Cv flow factor, the EF8210G3 supports pressures ranging from 5 to 250 PSI for air, 5 to 150 PSI for water, and 5 to 100 PSI for light oil.

🔧 Key Features:

• Voltage: 120V AC

• Port Size: 3/4" NPT

• Valve Type: 2-Way, Normally Closed

• Enclosure: Explosion-Proof

• Body Material: Brass

• Seal Material: NBR (Nitrile)

• Flow Coefficient (Cv): 6.5

• Max Pressure: 250 PSI (Air)

✅ Applications:

• Car Wash Systems

• Industrial Water Control

• Air Compressors

• Laundry Equipment

• Pump Systems

• Light Oil Handling

💧 Compliant Options Available:

• Lead-free versions available for Safe Drinking Water Act (SDWA) compliance.

Engineered for long service life, low internal leakage, and high flow efficiency, the ASCO EF8210G3 solenoid valve is ideal for a wide variety of demanding industrial applications.
