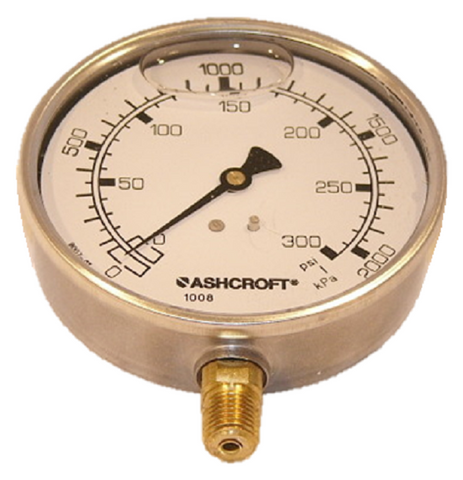

Ashcroft 1001008AL02L-0/300 Gauge

4" Dial Size 1/4" NPT Bottom Mount 0-300 PSI 304 Stainless Steel Liquid Filled Case Gauge

Ashcroft 1001008AL02L-0/300 Gauge – 4" Dial, 1/4" NPT Bottom Mount, 0-300 PSI, Liquid Filled, Stainless Steel

The Ashcroft 1001008AL02L-0/300 Gauge is a high-performance pressure gauge designed to provide accurate, reliable readings for a wide range of industrial applications. Built with a 4" dial size and 1/4" NPT bottom mount connection, this gauge features a 0-300 PSI range and is housed in a durable 304 stainless steel liquid-filled case. Ideal for environments subject to shock, vibration, and pulsation, the Ashcroft Type 1008A gauge is engineered for maximum durability and long-lasting performance.

Product Features:

• Dial Size: 4"

• Connection Type: 1/4" NPT bottom mount

• Pressure Range: 0-300 PSI

• Material: Stainless steel case, corrosion-resistant

• Type: Liquid filled (field-fillable, glycerin or silicone options available)

• Max Pressure: 300 PSI

• Mounting: Bottom mount for easy installation

• Safety Feature: True Zero indication for accurate zero pressure reading

• Movement: Patented PowerFlex movement for enhanced shock, vibration, and pulsation resistance

• Warranty: Two-year warranty on liquid-filled gauges

• Application: Industrial pressure measurement, HVAC systems, and machinery monitoring

Key Benefits:

• Corrosion-resistant stainless steel case and ring assembly for durability and long-term protection

• PowerFlex movement ensures higher resistance to mechanical shocks and vibrations, making it ideal for demanding environments

• True Zero indication for precise, safe pressure measurements

• Field-fillable or liquid-filled versions for customization based on your application’s needs

• Versatile mounting options, including panel mounting with optional U-clamp accessory kit or retrofit flange kit for smaller openings

Applications:
Perfect for use in industrial, commercial, and HVAC applications where pressure monitoring is crucial, especially in environments with exposure to harsh conditions.

Note: Product image may not match exactly; refer to the product details for specifications and model confirmation.
