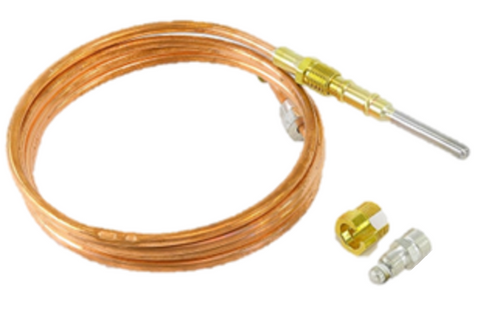

BASO K16WT-60 Thermocouple

The BASO K16WT-60 is a field-proven Husky Series thermocouple designed specifically for standing pilot ignition systems. Built with heavy-duty, large-gauge copper tubing, this 60-inch thermocouple is engineered to reduce millivolt line loss, ensuring reliable power to thermoelectric gas valves. It operates within a 25-35 mV range (open circuit) and is technically identical to the K16WT-60H. This high-performance wholesale model includes a 11/32-32 female nut connector and is supplied with additional fittings to handle diverse HVAC pilot burner configurations. It serves as a direct upgrade or replacement for several legacy series, including BASO 17D, 50, 87D, and K15DA. When troubleshooting a pilot that will not stay lit, this heavy-duty lead provides the consistent millivolt output necessary for industrial and commercial furnace applications where standard leads often experience voltage drop due to length.

• Enhanced Conductivity: Large-gauge copper construction minimizes resistance and ensures a stable 25-35 mV open circuit range.
• Universal Replacement: Designed to replace BASO 17D, 58D, 88D, 97D, and K15DA series, making it a versatile HVAC replacement part.
• Robust Connection: Features a standard 11/32-32 female nut and includes additional adapters for simplified standing pilot gas valve installation.
• High-Temperature Durability: Rated for a maximum hot junction temperature of 1500°F (816°C) to withstand demanding furnace environments.

Is the K16WT-60 interchangeable with the K16WT-60H?
Yes, these two part numbers refer to the same "Husky" high-output thermocouple specification and are functionally identical for all field applications.

What should I check if my pilot won't stay lit after installing a 60-inch lead?
Verify the thermocouple is seated correctly in the pilot bracket with at least 0.5 inches of the tip engulfed in the flame. For 60-inch standing pilot ignition leads, ensure the capillary is at least 1/2" away from the main burner heat to prevent cold junction overheating.

Will this work with other manufacturers’ gas valves?
While optimized for BASO pilot burners and automatic pilot controls, the K16WT-60 is compatible with many other brands that utilize a standard 11/32-32 thread-in connection.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
