Beckett Igniter 7505P1515U Control

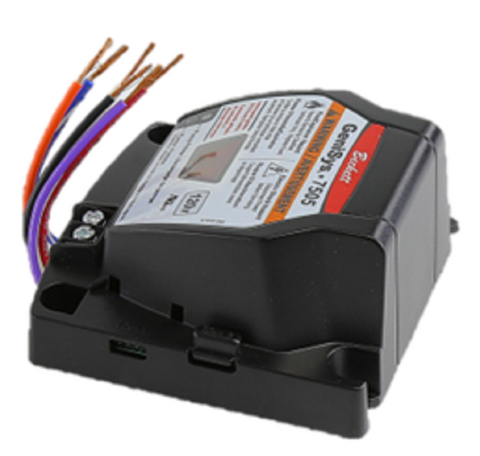

Beckett 7505P1515U GeniSys® Oil Burner Control – 120V Primary Safety Control

The Beckett 7505P1515U GeniSys® Oil Burner Control is a dependable 120 VAC primary control designed for residential and light commercial oil burners used in boilers, furnaces, and water heaters. This smart control ensures safe and efficient burner operation by managing the oil burner’s motor, igniter, and optional solenoid valve.

Engineered for reliability, the GeniSys® 7505 series works with the GeniSys® CAD Cell Flame Detector Kit 7006U to monitor flame presence. It features front-mounted 24 VAC thermostat terminals compatible with both standard mechanical and many power-stealing thermostats. The unit operates the burner with interrupted ignition and a secure 15-second lockout time to maximize safety.

Programming is quick and easy using the GeniSys® 52082 Contractor Tool or the BeckettLink® Pro Contractor Tool 7652, allowing custom pre-purge and post-purge settings to match your system’s needs. For convenient troubleshooting, the control stores the last 15 burner cycles.

For areas with high moisture, consider the potted version, the Beckett GeniSys® 7575 Oil Burner Control, for extra protection.

Key Features:

• Genuine Beckett GeniSys® oil primary control

• Model: 7505P1515U

• 120 VAC primary safety control

• Interrupted ignition with 15-second lockout

• Programmable purge timings with contractor tools

• Compatible with GeniSys® CAD Cell Flame Detector Kit (7006U)

• Stores last 15 cycles for easy diagnostics

• 24 VAC thermostat terminals (mechanical & power-stealing compatible)

• Potted version available for high-moisture installations (Model 7575)

Brand: Beckett
Part Number: 7505P1515U

Ensure safe, reliable operation of your oil burner with the trusted Beckett 7505P1515U GeniSys® Oil Burner Control — order yours today!
