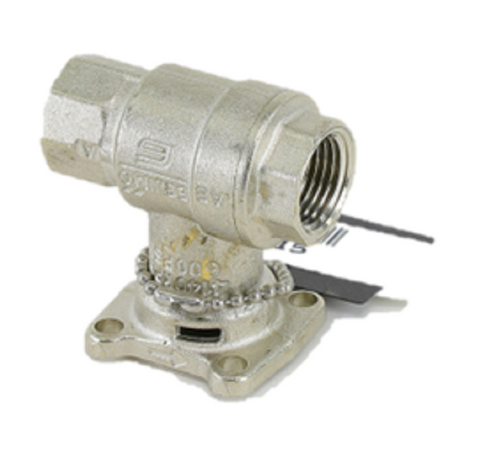

Belimo B215 Valve

The Belimo B215 valve is a robust 1/2" NPT 2-way ball valve engineered for precise flow control in hydronic HVAC applications. Featuring an equal percentage flow characteristic, this characterized control valve (CCV) delivers a consistent 10 Cv, making it ideal for managing chilled or hot water systems up to 250°F (120°C) and glycol solutions up to 60%. Its nickel-plated forged brass body, coupled with a stainless steel ball and stem, ensures durability and corrosion resistance. With a 600 psi body pressure rating and a 200 psi close-off pressure, the B215 is a reliable component for air handling units, fan coil units, unit ventilators, and VAV box reheat coils, providing maintenance-free operation and accurate modulation.

Key Benefits

• Precise Flow Control: Equal percentage flow characteristic ensures stable and accurate modulation for optimal system performance.
• Durable Construction: Nickel-plated forged brass body with stainless steel ball and stem offers extended service life in demanding HVAC environments.
• Wide Application Range: Suitable for chilled or hot water systems, including those with up to 60% glycol, across various hydronic applications.
• High Pressure Rating: Designed to handle system pressures up to 600 psi with a 200 psi close-off rating, ensuring reliable operation.
• Maintenance-Free: Engineered for long-term reliability without requiring regular servicing.

Common Questions

• What is the maximum fluid temperature this valve can handle? The Belimo B215 is rated for fluid temperatures from 0°F to 250°F (-18°C to 120°C).
• Can this valve be used with glycol solutions? Yes, it is compatible with chilled or hot water systems containing up to 60% glycol.
• What type of flow characteristic does the B215 provide? This valve features an equal percentage flow characteristic, ideal for modulating control.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
