Bray Commercial VRC-VE700G-T1 Positioner

ELECTRO-PNEUMATIC POSITIONER

VRC-VE700G-T1 is identical to VE700G-T1

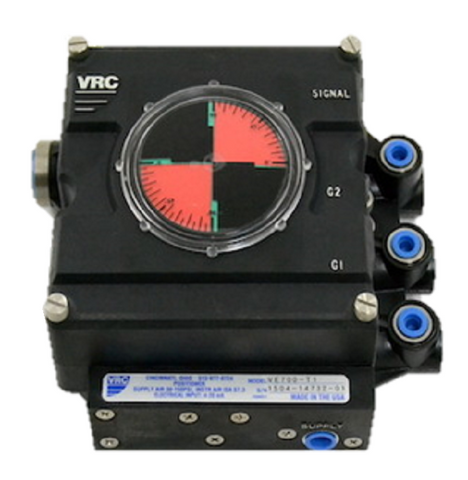

Bray VRC-VE700G-T1 Electro-Pneumatic Positioner – General Purpose Valve Positioner for Accurate Control

The Bray VRC-VE700G-T1 Electro-Pneumatic Positioner is a high-performance solution designed for precise valve and damper positioning in industrial applications. Ideal for controlling stem positioning with 4-20 mA input signals, this robust unit delivers reliable, proportional output to actuators, ensuring accurate and repeatable valve control.

Key Features:

• Model: VRC-VE700G-T1

• Type: Electro-Pneumatic Valve Positioner

• Applications: Valve or Damper Control

• Control Input: 4-20 mA

• Output: Proportional to input signal for accurate actuator movement

• Gauges: Brass port gauges

• Position Indicator: Flat 90-degree visual indicator

• Spool Valve: Standard Flow

• Air Consumption at 80 PSIG: 0.25 SCFM

• Gain at 80 PSIG: 250 (Single-Acting) / 500 (Double-Acting)

• Linearity: ±1.0% Maximum

• Temperature Range: -40°F to 150°F (-40°C to 65°C)

• Characterizing CAM: Linear

• Design: Modular, easy to install and modify

• Enclosure: Corrosion-resistant for long-term durability

The Bray VRC-VE700G-T1 positioner is engineered for general-purpose use, offering excellent accuracy and a rugged build that stands up to demanding environments. Its modular design makes installation and customization simple, while the corrosion-resistant housing ensures longevity in harsh conditions.

Ideal For:

• Industrial process control

• HVAC damper systems

• Automated valve systems

• OEM and retrofit applications

Enhance your process efficiency with the Bray VRC-VE700G-T1—engineered for precision, built for durability.
