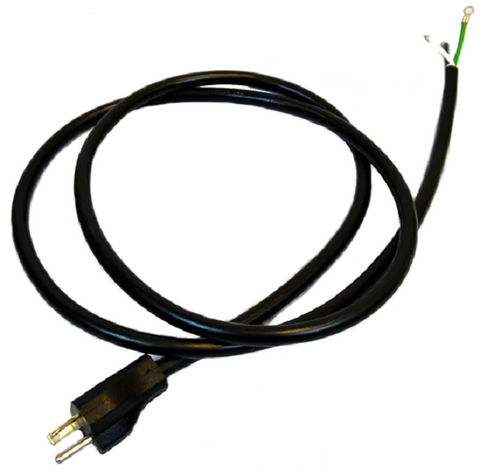

Bunn 23799.0001 ELE067 Aftermarket 6' 12/3 Black 5-20P Cord Set

The Bunn 23799.0001 ELE067 Aftermarket 6' 12/3 Black 5-20P Cord Set is a heavy-duty field replacement engineered for high-draw commercial beverage equipment and food service appliances. This 12 AWG 3-conductor power cord features a robust NEMA 5-20P plug, supporting a 20 Amp 120V rating to ensure stable power delivery under continuous operating conditions. Constructed with high-grade SJTOW insulation, the jacket is oil, water, and weather resistant, making it an ideal commercial coffee maker power cord for demanding kitchen environments. The 105°C temperature rating provides superior thermal protection compared to standard cords, preventing jacket degradation near heat-generating brewing elements. For streamlined installation, the internal black and white wires are pre-terminated with butt connections, while the green ground wire features a #10 ring terminal for secure chassis grounding. This assembly serves as a direct Bunn power cord replacement, maintaining the safe and efficient operation of units like the SINGLE TF DBC and CDBCF series.

Key Benefits

• SJTOW Jacket Construction: Provides industrial-grade resistance to oils, moisture, and abrasion in high-traffic commercial kitchens.
• 20A NEMA 5-20P Compatibility: Designed for high-amperage 120V circuits, matching the specific electrical requirements of professional brewing systems.
• Verified Technical Terminations: Features butt-splice connectors and a #10 ring terminal to ensure a fast, low-resistance connection for field technicians.
• Thermal Stability: The 105°C rated insulation ensures the wire maintains integrity even when routed near internal heating components.

Common Questions

• Can I use this on a standard 15A household outlet? No, this unit features a NEMA 5-20P plug (one horizontal prong), which requires a dedicated 20 Amp commercial receptacle.
• Is the jacket resistant to kitchen grease? Yes, the SJTOW rating confirms the cord is specifically tested for oil and water resistance.
• Does this replace internal Bunn wiring? This is the main power supply cord assembly that connects the appliance to the wall outlet and terminates at the internal terminal block.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
