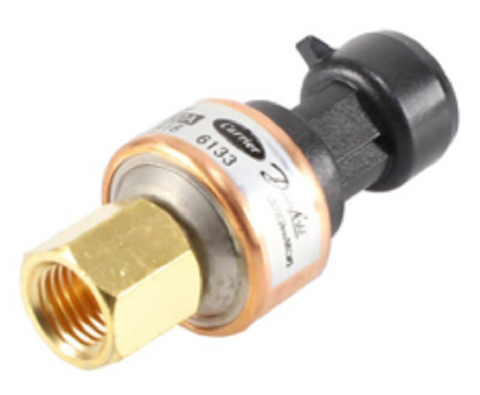

Carrier 00PPG000030600A Transducer

The Carrier 00PPG000030600A is a critical high-pressure discharge transducer engineered for precision monitoring in commercial Carrier AquaSnap and AquaForce chiller systems. This OEM pressure sensor is a Factory Authorized Part designed to provide accurate real-time data to the system controller, ensuring stable operation and protecting the compressor from high-pressure fault conditions. Built to handle a pressure range from 0 to 665 PSI (1 to 46 Bar), it utilizes a ratiometric 0.5 to 4.5 VDC signal via a standard 3-pin Packard connector for seamless integration into 30RB, 30XA, and 30XW refrigerant circuits. This transducer is fully compatible with modern refrigerants such as R-410A, R-134a, and R-1234ze. Designed for durability in demanding HVACR environments, it features a 1/4 inch SAE female flare fitting for a secure, leak-free installation. Replacing a legacy 00PPG0000300A pressure transducer with this updated Carrier 00PPG000030600A helps maintain optimal head pressure control and diagnostic accuracy in Greenspeed intelligence screw compressor units and large-scale rooftops.

Key Benefits for HVACR Technicians:

• Direct OEM Fit: Serves as a drop-in Factory Authorized replacement for various Carrier chiller models, eliminating the need for complex field modifications.
• Enhanced Accuracy: Delivers precise pressure-to-voltage conversion, critical for systems relying on tight head pressure control and electronic expansion valve (EEV) modulation.
• Broad Refrigerant Support: Rated for high-pressure applications using R-410A, R-134a, and leading low-GWP alternatives.
• Reliable Connection: Equipped with a standard 3-pin Packard electrical connector and a 1/4 inch flare port for rapid on-site troubleshooting and swaps.

Common Technical Questions:

Can I use this transducer on the suction side?
No, this part is specifically calibrated for the discharge side with a range up to 665 PSI. Using it on the suction side will lead to incorrect voltage feedback and potential system errors.

What are the symptoms of a failing discharge transducer?
Common signs include erratic head pressure readings on the controller, nuisance high-pressure trips, or the system failing to modulate the condenser fans correctly.

Is an adapter needed for the 30RB series?
Generally, no. As an OEM replacement part, it is designed with the specific 1/4 inch SAE fitting required for standard Carrier chiller ports.
