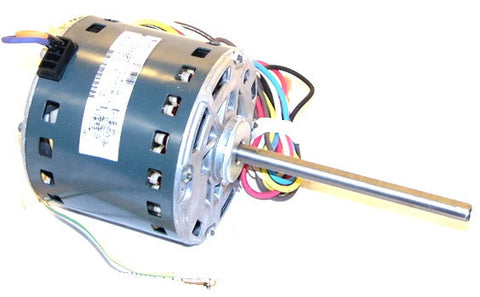

Carrier HC41SE117 Fan Motor

The Carrier HC41SE117 is a high-performance 1/3 HP blower motor engineered for precise airflow control in a wide range of Carrier, Bryant, and Payne residential and commercial air handlers. This 115V fan motor operates at a nominal 1075 RPM, providing the high-torque output necessary to overcome static pressure in complex ductwork. As a 4-speed motor, it allows technicians to fine-tune the system's CFM (Cubic Feet per Minute) to match specific heating and cooling load requirements, ensuring optimal heat exchange and humidity control. Built with an open air over (OAO) enclosure, this direct drive motor utilizes the moving airstream to dissipate heat, significantly extending the service life of internal windings and bearings during continuous operation. For contractors performing a furnace motor replacement, the HC41SE117 offers a drop-in OEM HVAC part solution that maintains the unit's original SEER ratings and performance specs without the need for mounting bracket modifications or wiring harness adaptations.

• Direct OEM Compatibility: Verified fit for Carrier-produced air handlers, ensuring reliable electrical integration and physical alignment.
• Multi-Speed Versatility: Features four distinct speed taps to optimize HVAC airflow for varied seasonal demands.
• Efficient 1/3 HP Output: Delivers consistent 1075 RPM at 115 Volts, striking a balance between energy consumption and static pressure capability.
• Industrial-Grade Build: Engineered to withstand the frequent cycling and thermal stress of commercial and residential service.
• Standardized Frame Specs: Designed for rapid installation in existing blower housings with minimal downtime.

Can I use this motor to replace a single-speed blower?
Yes, the Carrier HC41SE117 can replace single-speed models if the voltage and horsepower ratings match, provided you select the appropriate speed tap during wiring to meet the required CFM.

Does this motor require a specific capacitor?
Most 1075 RPM fan motors in this class require a 5 MFD or 7.5 MFD / 370V run capacitor. Always check the motor nameplate during installation to ensure the run capacitor rating is matched exactly to prevent overheating.

Is this motor compatible with 230V systems?
No, this is a dedicated 115V HVAC motor. Applying 208/230V power will cause immediate failure of the internal windings.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
