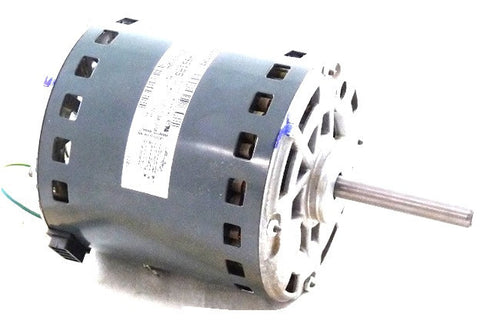

Carrier HC51SE230 Motor

The Carrier HC51SE230 is a heavy-duty, OEM replacement motor designed for high-performance air handling in commercial and residential HVACR applications. This 3/4 HP blower motor operates on a 208/230V single-phase power supply, delivering a consistent 1100 RPM to maintain static pressure requirements in demanding systems. Engineered for durability, this PSC motor (Permanent Split Capacitor) features a 5-5/8 inch diameter frame, typically cross-referencing with GE model 5KCP39RGH951AS and compatible with various Carrier, Bryant, and Payne air handlers and furnaces, such as the 48DJD006-520 series. When swapping out a failed unit, the HC51SE230 induction motor ensures the proper torque and airflow profile needed to protect the heat exchanger from overheating or the evaporator coil from freezing. For contractors, the Carrier 1100 RPM motor provides a direct-fit solution that minimizes field modifications. This Carrier fan motor is built for continuous duty, providing reliable thermal protection and efficient cooling cycles even under peak load conditions.

Key Benefits

• Direct OEM Fit: Ensures seamless mechanical compatibility with Carrier HC51SE230 specifications, eliminating the need for universal mounting brackets.
• Optimized Airflow: The 3/4 HP motor rating and 1100 RPM speed are calibrated to meet factory CFM requirements for system efficiency.
• Robust Electrical Design: Designed for 208-230V 1Ph operation with built-in thermal protection to prevent windings from burning out during voltage fluctuations.
• Broad Cross-Compatibility: Functions as a reliable replacement for multiple GE and industrial motor equivalents in rooftop units and split systems.

Common Questions

Is the HC51SE230 a multi-speed or single-speed motor?
This specific model is typically utilized as a single-speed or 2-speed setup depending on the control board wiring, but always verify your lead connections against the original wiring diagram before energizing.

What capacitor size is required for this motor?
While the HC51SE230 is a PSC design, you should always check the nameplate on the new motor for the exact microfarad (MFD) rating required, as using an old capacitor can lead to premature motor failure.

Will this motor replace a 1/2 HP or 1 HP unit?
It is critical to match the horsepower and RPM exactly. Installing this 3/4 HP HVAC motor in place of a lower-rated motor may overload the circuit, while replacing a higher-rated motor will likely result in insufficient airflow.
