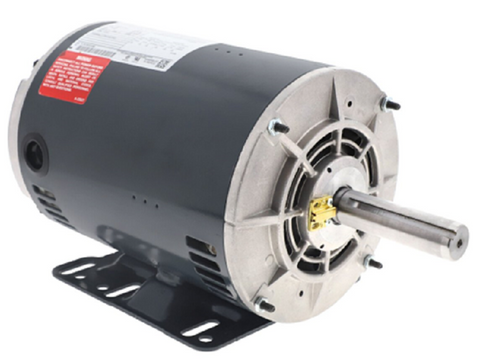

Carrier HD58FE654 Motor

Motor, 2.9 Horsepower, 208-230/460V, 1725 RPM, Reversible rotation, 56HZ Frame, Rigid Mounting

Carrier HD58FE654 Motor – 2.9 HP, 208-230/460V, 1725 RPM, Reversible Rotation – OEM Factory Authorized Part

The Carrier HD58FE654 Motor is a genuine Factory Authorized Part designed for reliable performance in HVAC systems. Featuring a powerful 2.9 horsepower PSC (Permanent Split Capacitor) motor, this unit delivers efficient operation with 208-230/460V compatibility and three-phase power. Its reversible rotation and rigid mounting make it versatile for a wide range of Carrier equipment applications.

Built with ball bearings for long-lasting durability, the HD58FE654 runs at 1725 RPM with a 56HZ frame size, providing smooth and dependable operation. It is CSA Listed for safety and quality assurance and made in Mexico to meet strict manufacturing standards.

Key Specifications:

• Horsepower: 2.9 HP (PSC Motor)

• Voltage: 208-230/460 VAC, 3-Phase

• Amps (Full Load): 7.8A

• Speed: 1725 RPM

• Rotation: Reversible (CCW standard)

• Frame Size: 56HZ

• Mounting: Rigid

• Shaft Diameter: 0.875" (7/8")

• Shaft Length: 3 1/8"

• Bearing Type: Ball Bearing

• Cycle/Hertz: 60 Hz

• Approvals: CSA Listed

• Country of Origin: Mexico

• UPC: 822529501772 | GTIN: 00822529501772

Features & Benefits:

• Genuine Carrier Factory Authorized Part for perfect fit and function

• PSC motor design ensures energy-efficient operation

• Durable ball bearings for extended motor life

• Reversible rotation for versatile installation

• CSA Listed for proven safety and quality

Keep your Carrier HVAC equipment running at peak performance with the HD58FE654 OEM Motor — engineered for long-lasting reliability and maximum efficiency.
