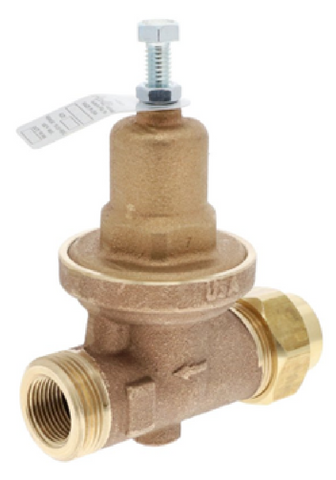

Conbraco 36-104-02 Valve

3/4" Union Threaded x 3/4" Female NPT, 10-35 PSI Outlet Adjustment Range, 180F Max Temperature, 300 PSI Max Inlet Pressure, Water Pressure Reducing Valve

Conbraco 36-104-02 Water Pressure Reducing Valve – 3/4" Union x FNPT, 10–35 PSI (OEM)

The Conbraco Industries 36-104-02 Valve is a high-quality water pressure reducing valve designed to safely and efficiently lower incoming high water pressure to a controlled, usable level. Featuring a 10–35 PSI outlet adjustment range, this valve helps protect plumbing systems and downstream equipment from pressure-related damage.

Constructed with a durable bronze body rated for temperatures up to 180°F and a 300 PSI maximum inlet pressure, the 36-104-02 pressure reducing valve is built for long-lasting performance in residential and commercial water systems. It includes a high-capacity 20-mesh strainer to help prevent debris from entering the system, ensuring consistent operation and reliability.

Key Features & Benefits

• Genuine Conbraco Industries OEM Valve

• Part Number: 36-104-02

• Valve Type: Water Pressure Reducing Valve

• Outlet Pressure Range: 10–35 PSI (adjustable)

• Maximum Inlet Pressure: 300 PSI

• Maximum Temperature: 180°F

• Connection Size: 3/4" Union Threaded x 3/4" Female NPT

• Durable Bronze Body for corrosion resistance

• 20-Mesh High-Capacity Strainer for debris protection

• Adjustable Pressure Setting (clockwise to increase, counterclockwise to decrease)

Easy Installation & Maintenance

The 36-104-02 is designed for easy installation and service. Its replaceable seat assembly and cartridge allow quick maintenance or replacement without removing the valve from the pipeline.

Certifications

• ASSE Certified

• UPC Listed

• CSA Certified

Applications

• Residential plumbing systems

• Commercial water distribution systems

• Water pressure regulation for appliances and fixtures

Choose the Conbraco 36-104-02 Water Pressure Reducing Valve for precise pressure control, durable construction, and certified performance you can trust.
