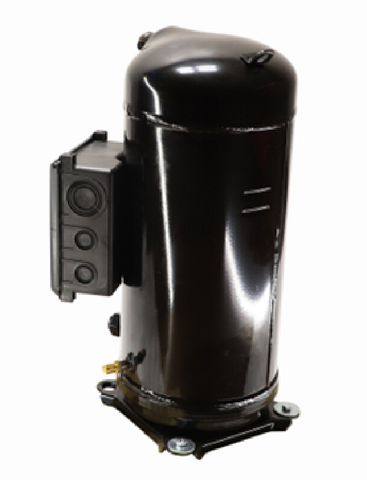

Copeland ZP182KCE-TED-965 Compressor

460v3ph 182000Btu Scroll Comp

ZP182KCE-TED-965 is the direct replacement for ZP182KCE-TED-465

Copeland ZP182KCE-TED-965 Scroll Compressor – 460V 3-Phase, 182,000 BTU, R-410A

The Copeland ZP182KCE-TED-965 is a high-performance, energy-efficient scroll compressor designed for commercial HVAC systems requiring reliable cooling power. With an impressive BTU output of 182,000 and operating on 460V 3-phase power, this hermetic scroll compressor is ideal for air conditioning applications using R-410A refrigerant.

This unit features a rugged, compact design with external enhanced protection, low sound output (82 dBA), and superior polyolester (POE) oil lubrication for extended compressor life. Engineered by Copeland, a trusted leader in HVAC technology, the ZP182KCE-TED-965 delivers dependable performance and easy integration into new or existing systems.

Key Features:

• Model: ZP182KCE-TED-965

• Brand: Copeland

• BTU Capacity: 182,000 BTU

• Compressor Type: Hermetic Scroll

• Refrigerant: R-410A

• Voltage: 380/420/460V, 3-Phase, 50/60Hz

• Rated Load Amps (RLA): 26.9

• Locked Rotor Amps (LRA): 173

• Amperage Range: 21.4 – 26.3 Amps

• Sound Level: 82 dBA

• Oil Type: POE | Initial Charge: 114 oz.

• Mounting Dimensions: 7.50" x 7.50" x 23.02"

• Height: 22.21" | Length: 12.93" | Width: 11.73"

• Suction Line Size: 1 3/8" OD | Discharge Line Size: 7/8" OD

• Country of Origin: USA

• UL Recognized: Yes

• Prop 65 Compliant: Yes

Applications:

• Rooftop HVAC units

• Commercial air conditioning systems

• Industrial refrigeration systems

• Energy-efficient system retrofits

Upgrade your HVAC system with the powerful and efficient Copeland ZP182KCE-TED-965 Scroll Compressor—trusted for its performance, reliability, and ease of installation. Buy now for fast shipping and competitive pricing from certified suppliers.

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.
