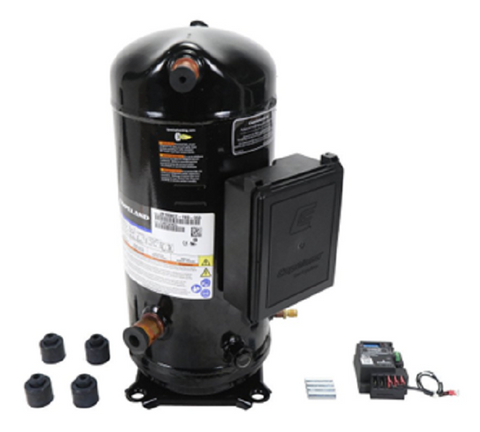

Copeland ZR190KCE-TED-950 Compressor

460v3ph,R134A/R407C COMP

ZR190KCE-TED-950 is the direct replacement for ZR190KCE-TFD-455

Copeland ZR190KCE-TED-950 Scroll Compressor – 190,000 BTU/hr, 460V 3-Phase, R134A/R407C/R22

The Copeland™ ZR190KCE-TED-950 Scroll Compressor delivers exceptional efficiency, durability, and performance for commercial HVAC and refrigeration systems. Part of the trusted Copeland ZR Scroll Series, this compressor provides 190,000 BTU/hr cooling capacity and is compatible with R-22, R-407C, and R-134A refrigerants.

Designed with advanced scroll technology, the ZR190KCE-TED-950 operates at 3500 RPM with a 15 HP motor and 460V 3-phase power, ensuring smooth, energy-efficient operation. It features a 1-3/8 in. suction line stub and 7/8 in. discharge line stub, making installation straightforward across multiple system configurations.

Key Specifications:

• Manufacturer: Copeland

• Model: ZR190KCE-TED-950

• Series: ZR Scroll Series

• Cooling Capacity: 190,000 BTU/hr

• Power Rating: 15 HP / 11,300 W

• Voltage: 460V, 3-Phase

• Amperage: 26.2 A (Rated), 173 A (Locked Rotor)

• Refrigerants: R-22, R-407C, R-134A

• Flow Rate: 253–256 gps

• Displacement: 249.16 cu-cm/rev (52.31 cu-m/hr)

• CFM Rating: 30.78 cfm

• Speed: 3500 RPM

• Sound Level: 83–88 dBA

• Suction Line Size: 1-3/8 in. stub

• Discharge Line Size: 7/8 in. stub

• Enclosure: Semi-hermetic scroll

• Compressor Oil: POE-AK/DA, 3MA/SP32 (3371 mL initial charge)

• Dimensions: 12-53/64 in. L x 11-39/64 in. W x 21-23/32 in. H

Features & Benefits:

• High-efficiency scroll design for reliable performance

• Multi-refrigerant compatibility (R22, R407C, R134A)

• Built-in discharge temperature and motor protection

• NEMA-rated durability with low ambient cut-out

• Thermally protected for safe, long-term operation

• Compact footprint with multiple mounting options

• Quiet operation at 83–88 dBA sound levels

Applications:
The Copeland ZR190KCE-TED-950 is ideal for use in commercial air conditioning, heat pumps, rooftop units, chillers, and refrigeration systems requiring dependable high-capacity scroll compression.

Ensure maximum reliability and efficiency with the Copeland ZR190KCE-TED-950 Scroll Compressor – engineered for today’s demanding HVAC and refrigeration needs.

Warranty policy for this compressor is one year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.
