Danfoss 067L5859 TXV

3/8"TR6 TXV R-22 5-6Ton W/Kit

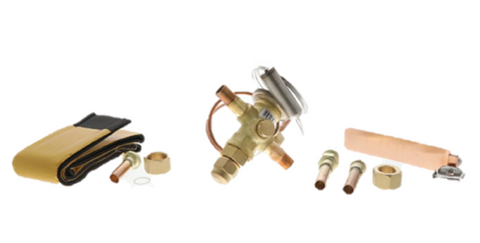

Danfoss 067L5859 TR6 Thermostatic Expansion Valve – 3/8", R-22/R-407C, 5-6 Ton with Kit

The Danfoss 067L5859 TR6 TXV is a high-performance thermostatic expansion valve designed for reliable and efficient control of refrigerant flow in air conditioning and refrigeration systems. Optimized for R-22 and R-407C refrigerants, this TXV is ideal for systems in the 5–6 ton range, making it a preferred choice for both commercial and industrial HVAC applications.

Key Features:

• Refrigerant Compatibility: R-22 / R-407C

• Capacity: 6.7 TR / 23.6 kW

• Orifice Size: #7

• Connection Size: 3/8" ODF Solder Inlet & Outlet

• Temperature Range: 15°F to 60°F

• Static Superheat: 39.25°F (4.03°C)

• Capillary Tube Length: 31.5 in (800 mm)

• Balanced Port Design: Ensures stable performance under varying load conditions

• Adjustable Superheat: Allows for fine-tuned performance

• Includes Kit:

  • (1) Aeroquip 5/8” female connector

  • (1) Chatleff 3/4” female connector

  • (1) Flare 3/8” connector

  • Bulb strap, insulation tape, and installation instructions

Technical Specifications:

• Model: TR6

• Max Working Pressure: 711 psig (49 bar)

• Factory Setting: 104.8 psig (6.21 bar)

• Flow Direction: Straightway with embossed arrow indicator

• Approval: UL recognized (SA7200), cULus listed

• Material: Brass body with copper connections

• Serviceable: No

• RoHS Compliant: Yes (with exemptions)

• REACH Listed: Contains Lead (CAS 7439-92-1)

• SCIP Number: 6fed54a1-6cec-4dc8-94c1-451bfa8f7152

• California Prop 65 Warning: ⚠️ Cancer and Reproductive Harm – www.p65warnings.ca.gov

Whether you're replacing a worn TXV or upgrading your system for peak performance, the Danfoss 067L5859 offers reliable temperature control, precise refrigerant metering, and robust build quality trusted by HVAC professionals worldwide.
