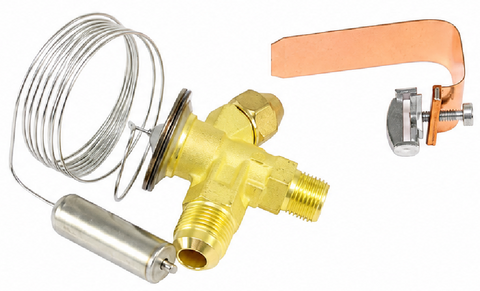

Danfoss 068Z3400 Expansion Valve

3/8"x1/2"TS2 R404A IntExpValve

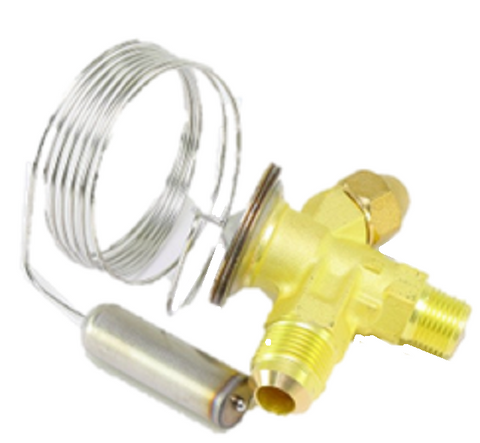

Danfoss 068Z3400 Thermostatic Expansion Valve – T2 Series, R404A/R507A, 3/8" x 1/2", Internally Equalized

Upgrade your refrigeration or air conditioning system with the Danfoss 068Z3400 T2 Thermostatic Expansion Valve. Engineered for precise refrigerant flow control, this valve is compatible with R404A and R507A refrigerants and features internally equalized pressure regulation for enhanced system stability and performance.

Key Features:

• Part Number: 068Z3400

• Type: Thermostatic Expansion Valve (T2 Series)

• Inlet Connection: 3/8" Flare

• Outlet Connection: 1/2" Flare

• Capillary Tube Length: 59 in (1500 mm)

• Temperature Range: -40°F to 50°F (-40°C to 10°C)

• Refrigerants Supported: R404A, R507A

• Pressure Equalization: Internally Equalized

• Max Working Pressure: 34 bar / 500 psig

• Flow Direction: Single-Flow (Angleway, with Embossed 1-Way Arrow)

• Body & Connection Material: Brass

• Superheat Setting: Adjustable (Static Superheat: 7.2°F / 4°C)

Product Details:

• Gross Weight: 0.306 kg

• Net Weight: 0.284 kg

• Volume: 0.489 liters

• EAN: 5702422125280

• SCIP Dossier No.: c164ed45-f10d-4d73-9eae-355ccb479f4b

• Includes: Bulb strap

• Serviceable: Yes (TXV spare parts available)

• Identical Product: 068Z3508

• Compliance: EAC Approved; EU & China RoHS: Out of Scope

• Category: Art. 4, par. 3

• Proposition 65 Warning: Cancer and Reproductive Harm – www.p65warnings.ca.gov

Applications:
Ideal for commercial refrigeration systems and industrial cooling applications that require reliable temperature control and refrigerant efficiency.
