Fasco D895 Motor

208-230V 1/8HP 1650RPM Motor

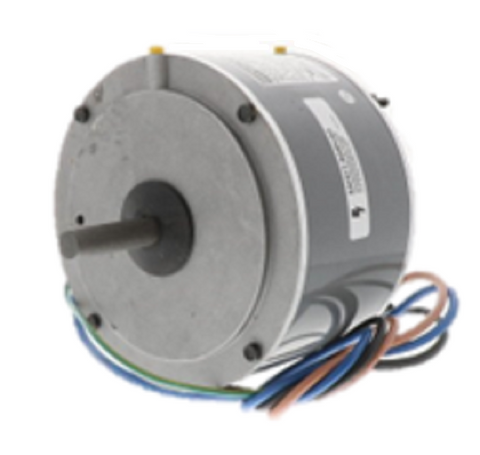

Fasco D895 Motor | 208-230V 1/8 HP 1650 RPM | OEM PSC Replacement Motor – 48 Frame, TEAO, Thermally Protected

Upgrade or replace your HVAC motor with the Fasco D895, a high-quality OEM direct replacement motor engineered for reliability and efficiency. Operating at 208-230V, 1/8 HP, and 1650 RPM, this permanent split capacitor (PSC) motor is ideal for various air-moving applications in residential and light commercial systems.

✅ Key Features:

• Model: D895 (Alternate: 8856KTS-A13U)

• Horsepower: 1/8 HP

• Voltage: 208–230V

• Speed: 1650 RPM

• Frame Size: 48 (5.6" Diameter)

• Mounting: Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)

• Capacitor Required: 4 MFD – 370V (Not Included)

• Thermal Protection: Automatic

• Bearing Type: Sleeve Bearing

• Enclosure: Totally Enclosed Air Over (TEAO)

• Insulation Class: B

• Ambient Temperature: 60°C

• Shaft: 1/2" Diameter with Flat

• Wiring: (1) 20" Lead with Flag Terminal, (2) 20" Leads with Quick Connect Terminal

• Duty Cycle: Continuous

• Certifications: UL Recognized, CSA Approved

This Fasco D895 motor offers dependable performance with enhanced protection features such as thermal overload protection and totally enclosed construction for cleaner operation. Its compact 48-frame design makes it ideal for OEM replacements in blowers, fans, and ventilation systems.

Perfect for HVAC professionals, installers, and maintenance technicians—order now for fast shipping and competitive pricing on genuine Fasco motors.
