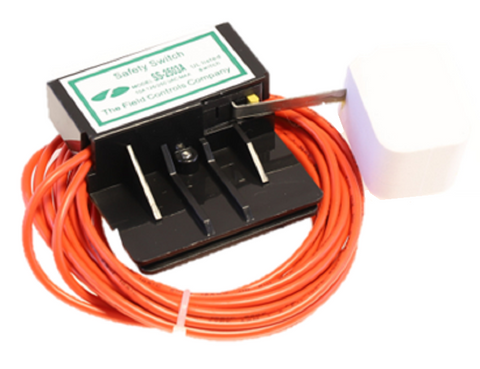

Field Controls 46347400 Safety Switch

The Field Controls 46347400 is an essential secondary float safety switch designed for professional HVAC installations where condensate management is critical. Engineered to monitor water levels within the secondary drain pan, this HVAC condensate safety switch provides a reliable fail-safe by interrupting the low-voltage thermostat circuit when a potential overflow is detected. This prevents costly water damage to ceilings and structural components caused by clogged drain lines or primary pan failures.

Constructed for high-duty performance in both residential and commercial air conditioning systems, the 46347400 features a precision float mechanism that ensures accurate detection without the nuisance tripping common in lower-grade components. Its universal design allows for seamless integration with existing 24V control circuits, making it a standard furnace and AC safety switch for contractors looking to meet building code requirements and ensure system integrity during peak cooling seasons.

Key Benefits for Technicians:

• Automatic System Shut-off: Instantly breaks the "R" or "Y" wire circuit to prevent a condensate pan overflow.
• High Sensitivity Float: Designed for reliable actuation even in tight secondary drain pan clearances.
• Universal Field Compatibility: Works with most 24VAC HVAC control boards and thermostat configurations.
• Rugged Construction: Built to withstand the humid, corrosive environment of a condensate collection area.
• Simplified Installation: Clips securely to pan edges, reducing time on the job site while ensuring a professional finish.

Common Questions:

How do I wire the Field Controls 46347400?
This switch is typically wired in series with the 24V red (power) or yellow (cooling) wire. When the float rises, the internal switch opens, breaking the circuit and shutting down the compressor to prevent further condensation.

Where should this secondary safety switch be installed?
It should be mounted on the edge of the secondary (emergency) drain pan. Ensure the float has unobstructed vertical movement to accurately detect rising water levels before the pan reaches maximum capacity.

Can this switch be used with high-efficiency furnaces?
Yes, as long as the system uses a standard 24V control circuit, this switch can be integrated into the condensate management system of high-efficiency furnaces and heat pumps.
