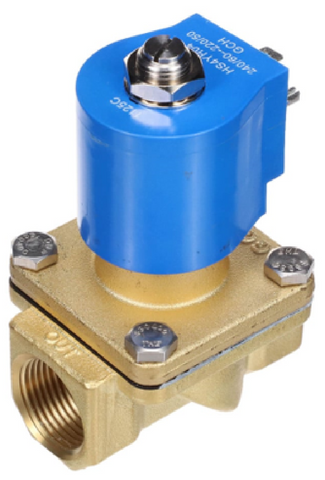

GC Valves H211YH04N5EG5 Valve

The GC Valves H211YH04N5EG5 Solenoid Valve is a 3/4-inch, 2-way normally closed valve designed for fluid-control applications requiring electrically operated shutoff. This configuration uses a 240/220 VAC solenoid coil with a DIN-style electrical connection and brass valve body.

The valve remains closed when the solenoid coil is de-energized and opens when the proper control voltage is applied. This operating configuration makes it suitable for automatic flow-control and shutoff applications.

The H211YH04N5EG5 is the replacement for H211YF04N5EG5. When replacing an existing solenoid valve, technicians should verify the complete valve number, port size, operating voltage, pressure requirements, controlled media, flow direction, seal compatibility, and electrical connection. GC Valves configurations can vary by coil, seal, pressure rating, and connection, so the complete part number should be verified before ordering.

Key Benefits

• Manufacturer: GC Valves
• Part Number: H211YH04N5EG5
• Product Type: Solenoid Valve
• Valve Configuration: 2-Way
• Normal Position: Normally Closed (NC)
• Port Size: 3/4 Inch
• Coil Voltage: 240/220 VAC
• Electrical Connection: DIN Style
• Body Material: Brass
• Referenced Pressure Rating: 300 PSI
• Replacement For: H211YF04N5EG5
• Designed for electrically controlled flow and shutoff applications
• Normally closed operation provides shutoff when the coil is de-energized

Common Questions

Is the H211YH04N5EG5 normally open or normally closed?
The valve is normally closed (NC), meaning it remains closed when electrical power is not applied to the solenoid coil.

What size is the GC Valves H211YH04N5EG5?
The valve uses a 3/4-inch connection.

What voltage does the H211YH04N5EG5 use?
This configuration is specified for 240/220 VAC operation with a DIN-style electrical connection.

Does H211YH04N5EG5 replace H211YF04N5EG5?
Yes. The H211YH04N5EG5 is the replacement for H211YF04N5EG5.

How do I confirm this solenoid valve is correct for my application?
Verify the complete existing valve number, connection size, voltage, operating pressure, controlled media, seal requirements, flow direction, and electrical configuration before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

H211YH04N5EG5 is the cross for H211YF04N5EG5
