GC Valves S302YF18N3BD5 Valve

1/4"npt 120vdc S.S. N/O Vlv.

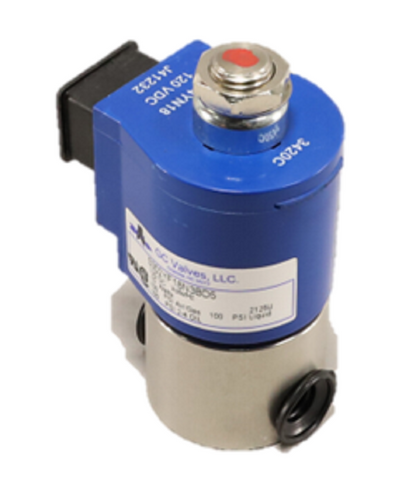

GC Valves S302YF18N3BD5 Stainless Steel Valve – 1/4" NPT, 120V DC, Normally Open

The GC Valves S302YF18N3BD5 Valve is a high-performance, industrial-grade solenoid valve engineered for reliable operation in demanding applications. Part of the trusted S30 Series, this 2-way normally open valve features a durable 303 stainless steel body, making it ideal for handling a wide range of aggressive and neutral media. Designed with precision, it delivers consistent flow control for air, gases, steam, water, and light oils.

Built with a Class F DIN coil and operating at 120V DC, this direct-acting solenoid valve ensures fast response, long service life, and dependable performance in various industrial and commercial systems.

Key Features:

• Model: S302YF18N3BD5

• Valve Series: S30

• Function: 2-Way Normally Open

• Voltage: 120V DC

• Coil Class: F (DIN Housing)

• Body Material: 303 Stainless Steel

• Seal Material: Nitrile

• Valve Type: Direct Acting

• Pipe Size: 1/4" NPT

• Orifice Size: 1/8"

• Approvals: CE, CSA, UL

Compatible Media:

• Aggressive media

• Air & neutral gases

• Light oil

• Slightly aggressive media

• Steam

• Water

The GC Valves S302YF18N3BD5 is designed for applications requiring superior corrosion resistance, fast actuation, and reliable normally-open valve performance. Ideal for industrial processing, HVAC systems, fluid control, and OEM equipment.
