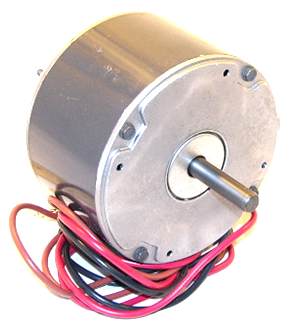

Heil Quaker ICP 1085927 Motor

Handle your next service call with the Heil Quaker ICP 1085927 Motor, a heavy-duty condenser fan motor designed for direct drive applications in residential and light commercial air conditioning units. This 1/5 HP powerhead is a Permanent Split Capacitor (PSC) motor engineered to maintain consistent 1075 RPM performance under high static pressure. Operating on 208-230Vac at 60Hz, this single-phase motor draws 1.3 Amps, providing an energy-efficient solution for condenser fan motor replacement tasks. Built with a 48 NEMA frame size and featuring a sleeve bearing system, this unit is optimized for air-over continuous duty. The clockwise rotation (CWLE) and band/thru-bolt mount configuration ensure broad compatibility with ICP, Heil, Tempstar, Comfortmaker, and Arcoaire condenser sections. For a reliable install, verifying the lead-end rotation and pairing this direct drive motor with a fresh 3 MFD/370V capacitor is recommended to ensure maximum system longevity and heat dissipation efficiency.

Key Benefits

• OEM Compatibility: Exact replacement motor for various ICP 1085927 and HQ1085927EM part numbers, ensuring a perfect fit without field modifications.
• Industrial Build: Features a 48Y frame with an enclosed enclosure to protect internal windings from environmental debris and moisture.
• Efficient Heat Exchange: Maintains 1075 RPM to provide the necessary airflow across refrigerant coils for optimal condenser thermal transfer.
• Standardized Mount: Utilizes band or thru-bolt mounting for quick installation in standard HVAC outdoor fan assemblies.

Common Questions

Which direction does this motor rotate?
This motor is designed for clockwise (CW) rotation when viewed from the lead end, making it compatible with standard condenser fan blades for Heil Quaker equipment.

How do I ensure this motor doesn't overheat?
Ensure the motor is used in air-over applications where the fan blade provides cooling, and always replace the run capacitor to maintain proper amperage levels.

What are the shaft dimensions for this 1085927 part?
The motor features a 1/2-inch diameter shaft with a 2-inch length, including a flat side for a secure hub connection.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
