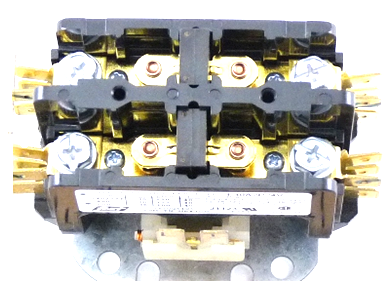

Heil Quaker ICP 1149650 Contactor

The Heil Quaker ICP 1149650 Contactor is a heavy-duty, 2-pole definite purpose contactor designed for high-cycle reliability in residential and light commercial HVAC applications. Engineered with a 24V coil and rated for a 30 AMP FLA (Full Load Amperage), this component is a critical switching solution for condenser fans and compressors within ICP, Heil, and Tempstar equipment. The 2-pole configuration ensures a complete break of both legs in a 240V circuit, preventing potential feedback and enhancing system safety during the off-cycle.

Built for durability, the ICP 1149650 features high-grade silver cadmium oxide contacts to resist pitting and welding under inductive loads. This HVAC replacement contactor is optimized for standard 24-volt control circuits, making it a drop-in replacement for worn or chattering units. Contractors can rely on its compact footprint for easy installation in tight control boxes, ensuring peak electrical switching performance and long-term equipment protection without the need for additional modifications.

• Precise 24V Control: Designed for seamless integration with standard low-voltage thermostat signals to energize the primary load.
• Dual-Pole Isolation: Fully disconnects both power legs to eliminate residual voltage at the load during standby.
• Definite Purpose Durability: Rated for 30A continuous current, providing robust switching for inductive motor loads.
• OEM Compatibility: Exact fit for Heil, Quaker, and ICP branded condensing units, maintaining original equipment specifications.

• Will this work if my current contactor is humming? Humming or chattering often indicates a failing 24V coil or debris in the magnet; replacing it with the 1149650 restores quiet, reliable operation.
• Can I use this 30A contactor to replace a 25A unit? Yes, you can always upsize the amperage rating for better heat dissipation as long as the coil voltage and pole count match.
• Is this compatible with 240V systems? Yes, the contacts are rated for 240V line voltage, while the coil is specifically designed for 24V control signals.
