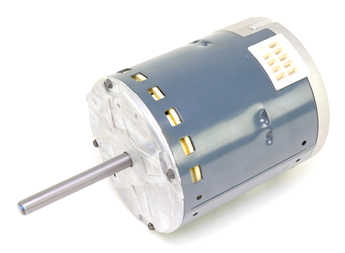

Heil Quaker ICP 1177603 Motor

The Heil Quaker ICP 1177603 is a high-efficiency OEM replacement blower motor engineered for specific HVAC applications requiring precise airflow control. This 3/4 HP variable speed motor operates on 208-230V single-phase power and draws 6.0 Amps, utilizing a NEMA 48 frame size for standardized mounting. Designed with ball bearing construction, this unit ensures high thermal endurance and reduced friction for long-term reliability in demanding cycles. The motor features a 1/2 inch x 4 inch shaft and clockwise (CW) rotation, secured via a integrated band mount configuration. As a genuine ICP HVAC replacement part, this ECM blower motor facilitates optimal static pressure management within the air handler, essential for maintaining system efficiency and indoor air quality. This component is critical for technicians performing furnace blower motor replacement where exact electrical specifications and torque curves are required to match the original factory performance profile.

• Variable Speed Performance: Delivers precise CFM adjustments to maintain system balance and energy efficiency.
• Heavy-Duty Construction: The NEMA 48 frame and ball bearing design provide superior mechanical stability.
• OEM Compatibility: Exact drop-in replacement for Heil Quaker 1177603, eliminating field modifications.
• Optimized Heat Dissipation: Engineered to operate reliably within high-temperature cabinet environments.

What are the symptoms of a failing 1177603 blower motor?
Technicians typically encounter intermittent operation, increased electrical noise from the bearings, or "hunting" speeds caused by a failing control module or high static pressure resistance.

Can I use a universal motor to replace this constant torque variable speed unit?
To maintain the engineered efficiency and airflow logic of the ICP system, a 3/4 HP variable speed motor with matching frame and electrical specs is required; universal induction motors will not communicate correctly with the existing control board.

Is the band mount included with the motor?
This motor utilizes a standard band mount housing; ensure your existing belly band or mounting bracket is inspected for integrity during the swap.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
