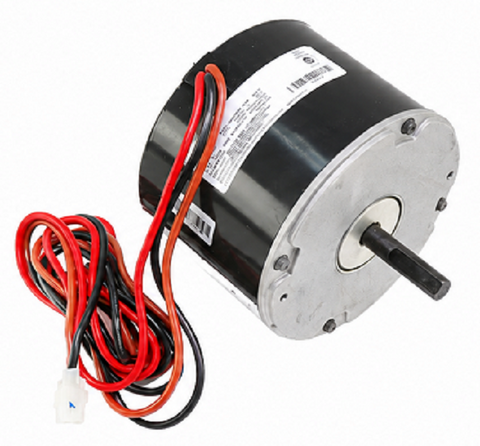

Heil Quaker ICP 1050703 Condenser Motor

The Heil Quaker ICP 1050703 is a robust 1/3 HP condenser fan motor designed for high-duty cycle applications in residential and light commercial HVAC systems. This PSC (Permanent Split Capacitor) motor operates at 230V and 1120 RPM, providing the consistent torque required to move air across the condenser coils effectively. Built with a NEMA 48 frame size and a standard band mount, it ensures a secure fit during field replacement. This unit features a CW rotation (Clockwise) and sleeve bearings for quiet operation and reduced vibration, drawing a low 1.2 amps at full load. As a direct crossover for the K55HXKAF-3146, it serves as a critical OEM replacement motor for ICP, Heil, and Quaker condensing units. Technicians should verify capacitor requirements and lead lengths to ensure a seamless drop-in installation during emergency repairs.

• OEM Compatibility: Exact replacement for Heil Quaker 1050703 and Emerson K55HXKAF-3146 models.
• Efficient Performance: 1/3 HP output at 1120 RPM optimizes airflow for better heat dissipation.
• Durable Construction: NEMA 48 frame with sleeve bearings designed for vertical or horizontal mounting.
• Low Amperage Draw: Operates at 1.2 Amps, reducing energy consumption and heat buildup in the windings.

Is the 1050703 interchangeable with other 48 frame motors?
Yes, provided the 1120 RPM speed, CW rotation, and 230V specifications match your existing unit.

What capacitor is required for this motor?
Always check the motor nameplate for the specific MFD/VAC rating to ensure proper starting torque and motor longevity.

Can this motor be used in multi-speed applications?
No, this is a 1-speed motor designed specifically for single-speed condenser fan operation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
