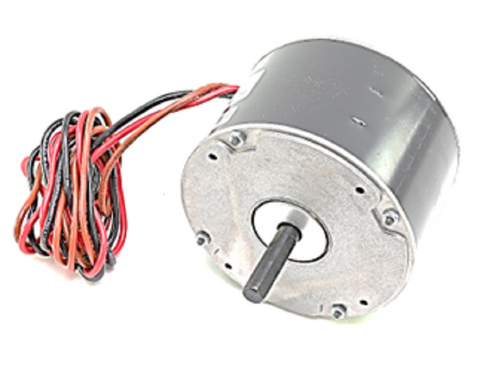

Heil Quaker ICP 1050892 Motor

Maintain peak cooling performance with the Heil Quaker ICP 1050892 Motor, a heavy-duty, direct-replacement condenser fan motor designed for International Comfort Products (ICP) equipment. This single-speed, 1/6 HP motor operates at a nominal 1100 RPM on a 208-230V single-phase circuit, drawing approximately 1.0 Amp under load. Built with a 48 NEMA frame size and sleeve bearings, it is engineered for the rigors of outdoor air-over (DAO) duty. The counter-clockwise (CCW) rotation and permanent split capacitor (PSC) design ensure reliable startup and efficient heat dissipation across the condenser coils. For a complete repair, ensure you use a 5 MFD 370V capacitor as required for this HVAC replacement motor.

Key Benefits

• Optimized Airflow: The 1100 RPM output is calibrated to move the precise cubic feet per minute (CFM) required to prevent compressor overheating.
• Broad Compatibility: This OEM motor fits a wide range of Heil, Tempstar, and Comfortmaker models, including CA5024, CA5030, and CH50 series units.
• Durable Construction: The sleeve bearing system provides quiet operation in vertical or horizontal mounting configurations using the standard band mount.
• Precision Specs: Exact 1/2 inch shaft diameter and 48Y frame alignment eliminate the need for field modifications during installation.

Common Questions

What are the signs that my condenser fan motor is failing?
Technicians typically look for high amperage draw, excessive motor casing heat, or seizing bearings characterized by grinding noises. If the fan blade is difficult to turn manually while the power is disconnected, the internal bearings are likely dry or damaged.

Does this motor require a specific capacitor?
Yes, to ensure proper phase shift and torque, this 230V fan motor must be paired with a 5 MFD @ 370V run capacitor. Reusing an old capacitor can lead to premature winding failure.

Can I use this as a universal replacement for other 1/6 HP motors?
While the 1/6 HP and 230Vac specs are common, you must verify the rotation (CCW) and the 1100 RPM speed match your specific fan blade pitch to avoid taxing the motor or reducing system efficiency.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
