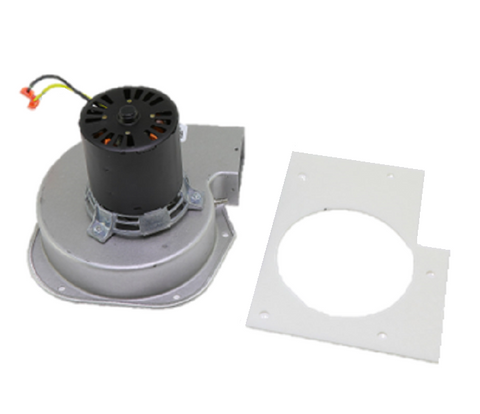

Heil Quaker ICP 1054268 Inducer Assembly

Maximize furnace efficiency and exhaust safety with the Heil Quaker ICP 1054268 Inducer Assembly. This OEM replacement draft inducer is engineered for high-static pressure heating systems, specifically those utilizing a 230V 3000RPM inducer motor to pull flue gases through restrictive secondary heat exchangers. Built with a 1/50 HP shaded pole motor, this assembly maintains consistent cfm performance to ensure proper combustion airflow and prevent pressure switch trip errors. The 1054268 is a direct substitute for Heil 1054268P and Fasco 7021-9237, offering a plug-and-play installation for technicians servicing Heil, Tempstar, and Comfortmaker units. This ICP furnace exhaust motor features a durable blower wheel and mounting plate housing, designed to withstand high-temperature exhaust environments without premature failure. By utilizing a genuine 1054268 inducer assembly, contractors can restore the integrity of the venting system and maintain optimal gas furnace performance in light commercial or residential applications.

• OEM Compatibility: Exact replacement for Heil Quaker, ICP, and Tempstar models requiring part 1054268 or 1054268P.
• Technical Precision: Rated at 230V and 3000 RPM with a 1/50 HP motor for reliable draft induction.
• Rugged Construction: Designed to handle high-temperature combustion gases and resist corrosion within the flue path.
• Contractor Ready: Direct-fit housing and motor assembly simplifies the swap-out process during emergency service calls.

Is the 1054268 compatible with the 1054268P version?
Yes, the 1054268 is technically identical to the 1054268P; the "P" suffix typically denotes retail packaging, but the electrical and mechanical specs are perfectly matched.

Will this inducer motor fix a furnace that starts but shuts off after a few seconds?
If the motor fails to reach 3000 RPM or if the centrifugal wheel is damaged, it may fail to close the pressure switch. Replacing a seized or underperforming inducer is a standard solution for proving draft in the combustion chamber.

Does this assembly include the combustion blower wheel?
Yes, this is a complete inducer assembly including the 1/50 HP motor and the integrated blower housing for a comprehensive vent system restoration.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
