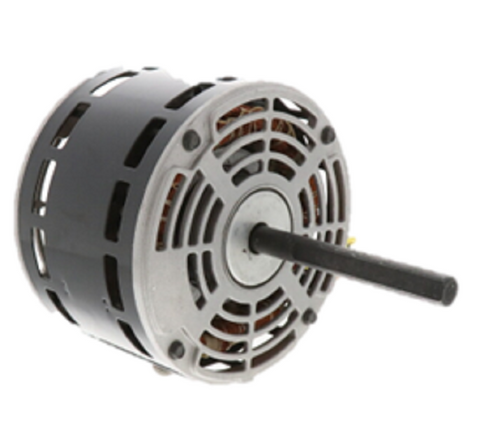

Heil Quaker ICP 1055203 Motor

The Heil Quaker ICP 1055203 Motor is a direct-drive Permanent Split Capacitor Motor engineered specifically for residential and light commercial blower assemblies. This 1/5 HP blower motor operates on 230Vac single-phase power, delivering a steady 1080 RPM as a single-speed solution for consistent airflow. Built with a 48 NEMA frame size and a 5.6-inch diameter, it features sleeve bearings for quiet operation and a band mount configuration for standard housing integration. With a 1.3 Amp draw and CCW rotation (counter-clockwise lead end), this motor provides the necessary torque for 1/2-inch shaft blower wheels in Heil, Tempstar, and Comfortmaker units. As a veteran-grade OEM replacement motor, it ensures the internal thermal protection and insulation class required to withstand high-static pressure environments without premature failure. Technicians should verify the 5 MFD at 370V run capacitor and inspect the existing blower wheel for balance to ensure optimal HVAC blower motor performance.

• Broad Compatibility: Primary ICP replacement motor for Heil, Tempstar, Arcoaire, and Comfortmaker branded furnaces and air handlers.
• Robust Electrical Design: Features a permanent split capacitor (PSC) design for high efficiency and reliable starting torque under load.
• Standardized Fitment: The NEMA 48 frame and band mount provide a drop-in installation for most standard blower housings.
• Quiet Operation: Precision-engineered sleeve bearings reduce vibration and decibel levels within the ductwork.
• Thermal Protection: Internally protected to prevent winding burnouts during Restricted Airflow (RAF) conditions.

What are the symptoms of a failing Heil 1055203 motor?
Common indicators include a humming sound without shaft rotation, intermittent cycling due to thermal overload, or reduced CFM despite a clean air filter. If the motor is hot to the touch or the run capacitor shows signs of bulging, the motor assembly likely requires replacement.

Can I use this as a universal replacement for other 1/5 HP motors?
Specifications must match exactly. Ensure your existing unit requires 230V, 1080 RPM, and CCW rotation. Using this motor in a 115V system or with the wrong rotation will lead to immediate electrical failure or zero airflow.

Does this motor include the capacitor?
This is the motor only. It is best practice to install a new 5 MFD / 370V capacitor during replacement to ensure the 1055203 operates within its rated amperage and avoids excessive heat buildup.
