Heil Quaker ICP 1069783 Motor

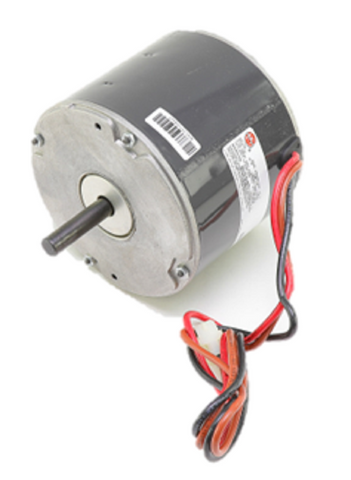

The Heil Quaker ICP 1069783 Motor is a high-performance 1/3 HP Condenser Fan Motor engineered for commercial and residential 460V HVAC applications. This OEM ICP replacement motor operates at a fixed 1100 RPM, utilizing a Permanent Split Capacitor (PSC) design to maintain optimal head pressure and thermal exchange in demanding environments. Featuring a 48 NEMA frame size and a standard 1/2-inch diameter shaft, this 460Vac single phase motor is built for drop-in compatibility with various Heil, Tempstar, and Arcoaire condensing units, including model series ACD036LAA and CA5548.

Designed for reliability, this Heil Quaker 1069783 fan motor incorporates a sleeve bearing system and is rated for a low 0.74 Amp draw, ensuring high electrical efficiency during continuous duty cycles. The unit features CW (Clockwise) rotation as viewed from the lead end and utilizes a versatile band/thru-bolt mount for secure installation. To prevent premature failures caused by vibration or overheating, technicians should verify the balance of the existing fan blades and replace the run capacitor (typically 5 MFD / 370V) during motor installation.

Key Benefits:

• OEM Compatibility: Precision-fit for ICP brands including Comfortmaker, Day & Night, and KeepRite.
• Industrial Build: Rated for 460V 60Hz systems, ideal for three-phase commercial equipment footprints.
• Efficient Performance: 1100 RPM single-speed operation ensures consistent airflow across condenser coils.
• Secure Mounting: Thru-bolt and belly band options provide flexibility for various cabinet configurations.
• Low Power Consumption: 0.74 FLA rating reduces operational costs and heat generation within the motor housing.

Common Questions:

What are the primary indicators that this condenser motor needs replacement?
Technicians should look for seized shafts, audible bearing noise, or a motor that hums without turning. If the motor is receiving 460V but fails to start, even after a capacitor check, internal winding failure is likely.

Can this motor be used in 230V applications?
No, this is a dedicated 460V single-phase motor. Attempting to run this on a 208-230V circuit will result in insufficient torque and eventual motor burnout.

Which rotation direction does this motor support?
This model is fixed for CW (Clockwise) rotation from the lead end. Always verify the pitch of your fan blade to ensure proper airflow direction before completing the installation.
